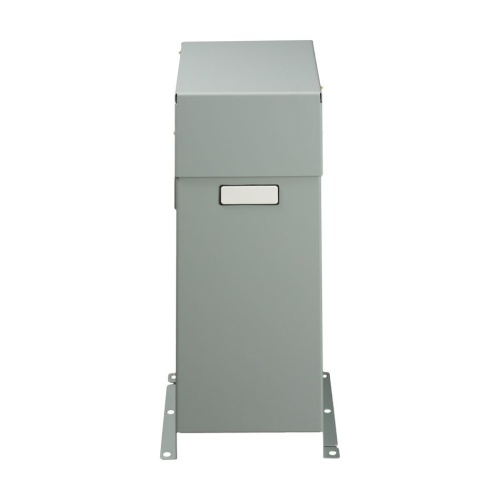

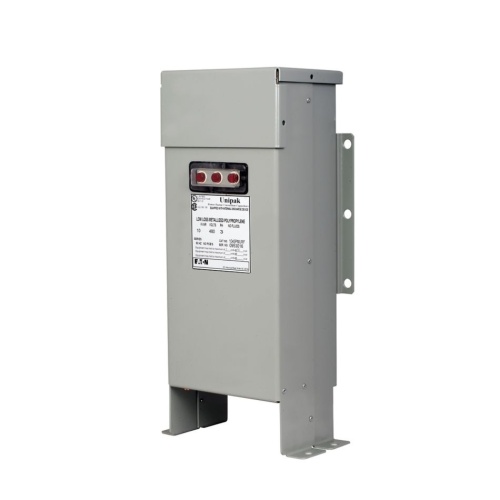

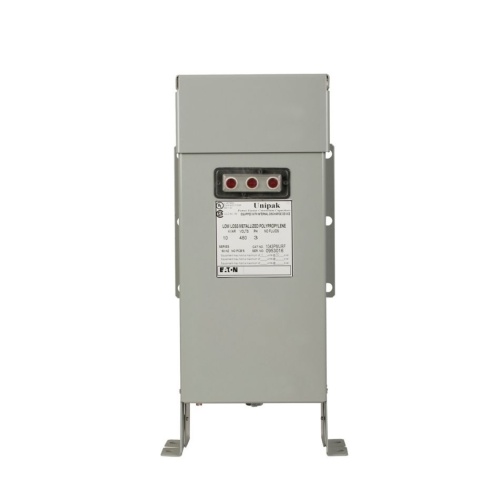

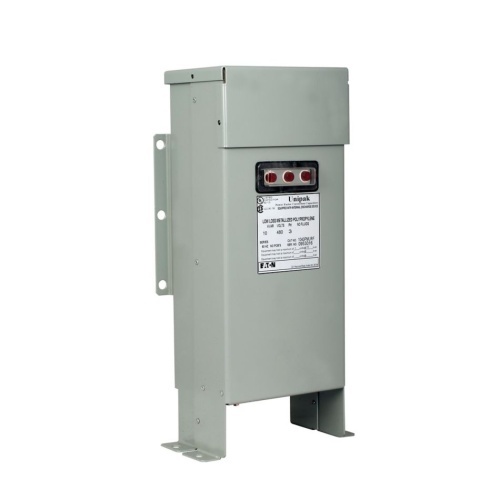

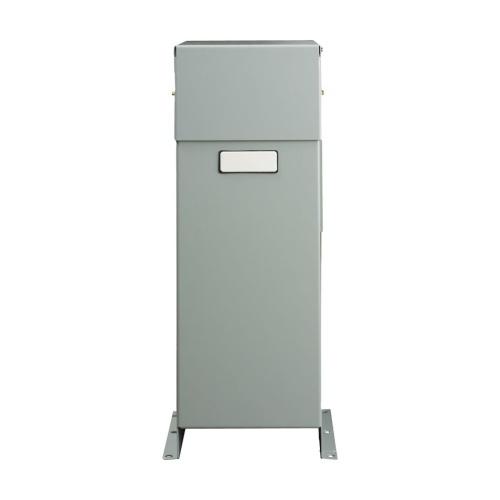

Eaton 18063PMURF Unipak Capacitor Bank - 180 kVAR
Normally In Stock
Code: 297177
Eaton 18063PMURF - 180 kVAR - 600 VAC - Three Phase - D1 Frame - NEMA 1, NEMA 3R Enclosure - 14 Gauge Steel w/ Powder Coat Finish - 36" x 19.3" x 11.978" (HxWxD) - 104.39 lbs
Condition: New
Usually ships Same Day or Next Day$6794.98
Sale Price
$5662.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton 18063PMURF - The UNIPAK with Heavy-Duty Capacitor Cells is a standard fixed capacitor system designed for use in moderate harmonic environments. These systems utilize robust and durable capacitor cells that are suitable for applications where engineering evaluation permits their use instead of detuned filter designs. The UNIPAK with Heavy-Duty Capacitor Cells offers the advantage of providing future conversion capability into a detuned filter system when required. This flexibility allows for seamless adaptation to facility growth or increased nonlinear load levels, ensuring long-term compatibility and optimal power factor correction.
Specifications
Manufacturer
Eaton
Component
Capacitor Bank
Enclosure
NEMA 1
Enclosure
NEMA 3R
Phase
Three Phase
Series
Unipak
Material
14 Gauge Steel W/ Powder Coat Finish
Voltage Rating
600 VAC
Reactive Power
180 Kvar
Rated Current
176.4 Amp
Frame Size
D1
Features
Eaton’s Unipak is a low voltage, fixed, fused power factor capacitor bank for use in heavy industrial applications with a stable load where fixed capacitance can provide the most effective means of correction.
With optional replaceable fusing, indicator lights for cleared fuses, and indoor/outdoor service, this small footprint capacitor can fit the specific needs of your application.
The Unipak features a twenty-five year life design with a two year warranty on capacitor cells for units with standard duty cells or a five year warranty on capacitor cells for units with heavy-duty cells.
