Code: 296176

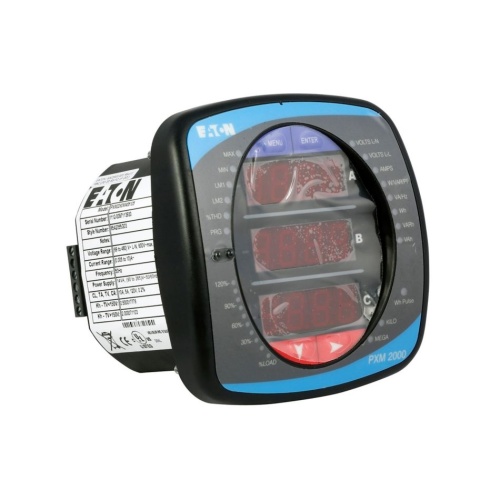

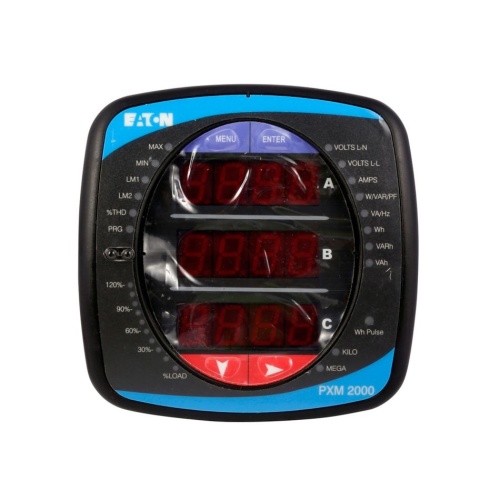

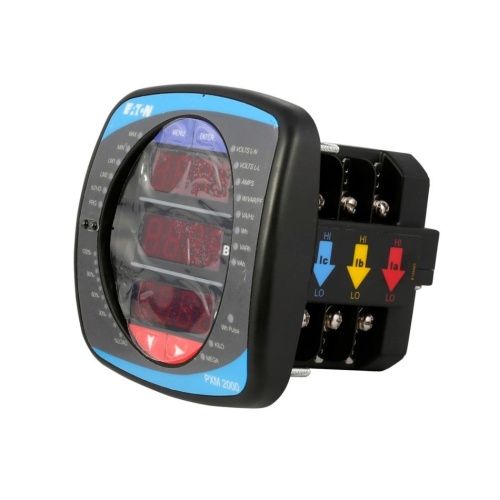

Eaton PXM2260MA51405 Power Meter
Normally In Stock
Eaton PXM2260MA51405 - 1 Amp - 24-60 VDC - 50 Hz - 1.25" x 3.25" x 12" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$5189.28
Sale Price
$4324.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton PXM2260MA51405 Power Xpert Meter 2000, 512 MB, with integral display, 50 Hz, 1A secondary, 24-60 Vdc, Gateway card
Specifications
Monitoring Approval
ANSI C12.20
Monitoring Primary Rated Current
1 Amp
Monitoring Connection Method
RJ45 Ethernet
Monitoring Connection Method
Modbus RTU
Monitoring Connection Method
Bacnet
Component
Power Meter
Manufacturer
Eaton
Monitoring Accuracy Class
Class 0.2
Monitoring Interface
Graphic Display (Local - Remote)
Monitoring Measuring Range
400 Samples/Cycle
Monitoring Connection Method
Modbus TCP
Monitoring Supply Voltage
24-60 VDC
Features
Monitors circuit loading to help avoid overloads and nuisance overload trips and maximize equipment utilization.
Manages energy utilization to help reduce peak demand charges and power factor penalties as well as identify excessive energy consumption.
Embedded web server allows users to see demand comparisons, trends, record waveforms, and harmonics directly in the Web browser.
Permanently installed meters support continuous, non-disruptive monitoring.
Graphical comparison views dramatically improve the ability to benchmark energy usage.
Industry-standard communication protocols support a multitude of configurations and third-party software: HTTP, HTTPS, Modbus RTU, Modbus TCP, BACnet/IP, SNMP, SMTP, NTP.
Programmable digital inputs and relay outputs interact during various conditions defined by the user.
Triggers and events are easily tied to the meter’s standard functions, such as e-mail, logs and trends.
Analog outputs can be programmed to emulate any measured meter parameter for output to other remote monitoring systems.
