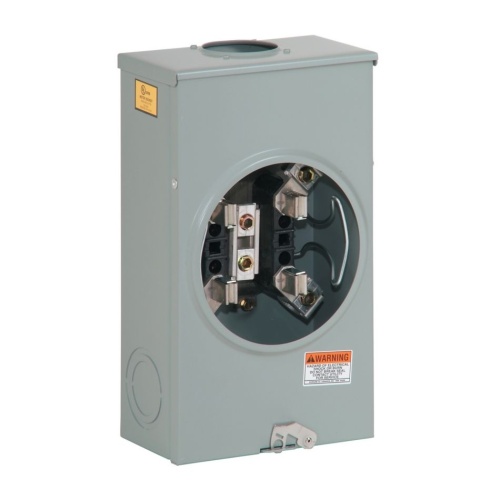

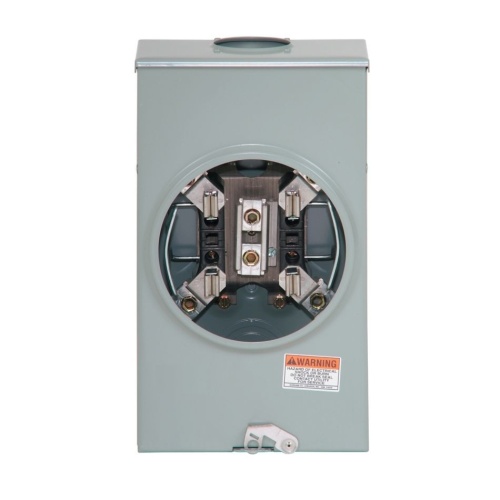

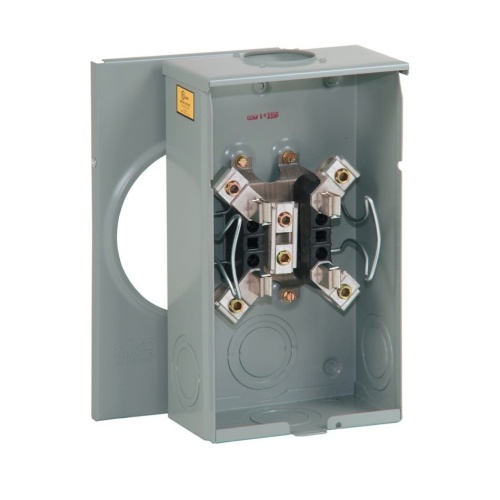

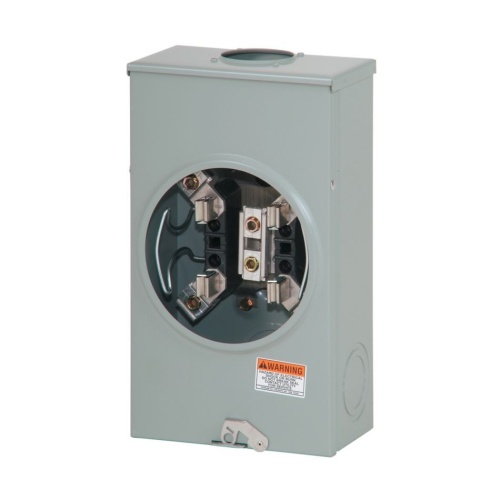

Eaton UTRS502BCH Residential Meter Socket - 150 Amp 600 Max Volt
Normally In Stock
Code: 295360
Eaton UTRS502BCH - 150 Amp - 600 Max Volt - 4 Jaws - Single Phase - 14" x 8" x 4.38" (HxWxD)
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$238.22
Sale Price
$198.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton UTRS502BCH - One Position residential service, 150A, Over, 3-5/16 inch hub open, #8-250 kcmil, 4-jaw, 1-ph, #8-250 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Specifications
Manufacturer
Eaton
Component
Meter Socket
Amperage
150 Amp
Maximum Voltage
600 VAC
Features
Single-socket surface- or flush-mount outdoor enclosures mean simple installation that saves time and money.
Two styles are available so that either BR or CH type branch breakers can be used.
One-piece, die-run enclosure eliminates tampering and extends product life.
Ground bars are available for field installation so installers can configure on the fly, saving time and money on installation.
Integral triplex or quadplex ground extruded in neutral lug. Having just one piece for terminating incoming/outgoing neutral conductors increases the integrity of connections.
Block assembly base exceeds 400 in-lbs of torque, which provides durability under the most extreme installation circumstances.
Adding meter sockets to the already existing (load center, surge, breakers, generators and AC disconnect) product lines makes Eaton a one-stop shop for residential and light commercial needs.
