Code: 294088

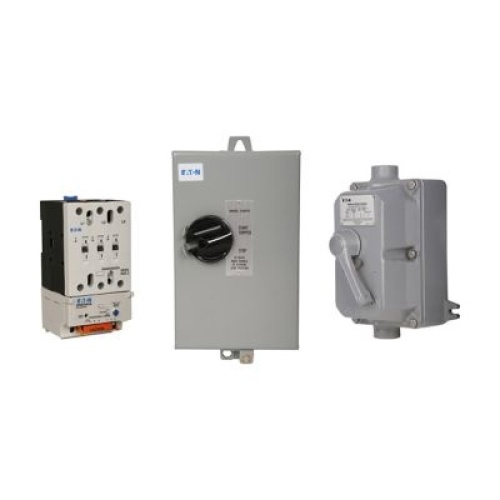

Eaton AN13CN0D5E020 NEMA Reversing Starter 600 Max Volt
Normally In Stock
Eaton AN13CN0D5E020 - Reversing - 600 Max Volt 60 Hz - 20.5" X 26.5" X 35" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1115.59
Sale Price
$929.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton AN13CN0D5E020 - NEMA starter, NEMA full-voltage reversing starter, 600V/60 Hz Coil voltage, With IT solid state overload relay, Size 6, 0.59-1.9 A
Specifications
Starter Frequency
60 Hz
Starter NEMA Size
6
Starter Coil Voltage
600 VAC
Starter Reversing Capability
Reversing
Manufacturer
Eaton
Component
NEMA Reversing Starter
Features
AC control from 120 V to 600 V 50/60 Hz
24 Vdc control
Reversing or non-reversing contactors and starters
XTOE self-powered electronic overload relay
Non-reversing starters to NEMA Size 5
Panel or DIN rail mounting to NEMA Size 2
IP20 finger and back-ofhand proof
Large ambient temperature range, –25 to 50 °C (–13 to 122 °F)
AC and DC controlled contactors in the same compact frame
Low power consumption AC and DC coils
Built-in NO or NC auxiliary contacts to 32 A
Plug-in accessories for reduced installation time
Coil replacement on NEMA Size 0–5
Contact replacement on NEMA Size 1–5
Integrated suppressor NEMA Size 0–4 DC operated contactors and NEMA Size 5 AC and DC operated contactors
