Code: 289594

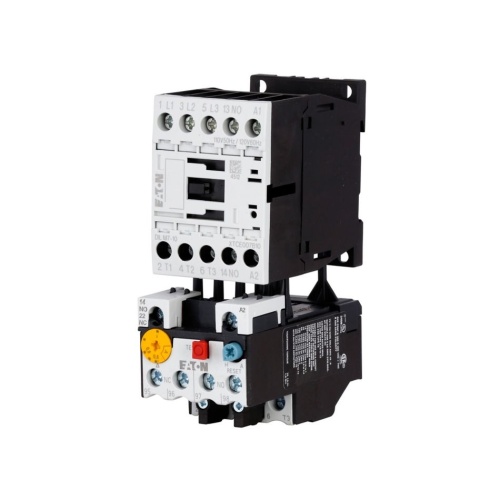

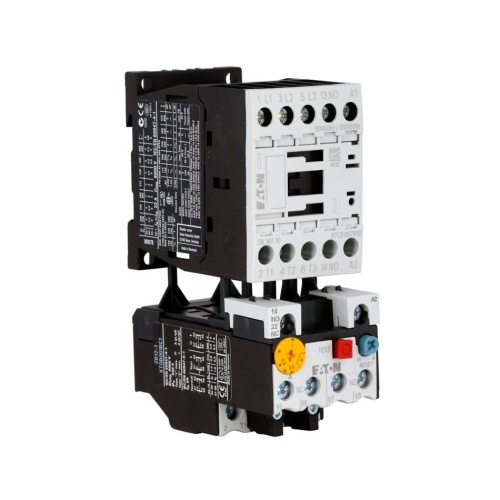

Eaton XTAE015B10TD010 IEC Non-Reversing Starter 15 Amp 24 Max Volt
Normally In Stock
Eaton XTAE015B10TD010 - XT IEC Series - Non-Reversing - 15 Amp - 24 Max Volt - 1 NO - 4.64" X 1.8" X 4.61" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$416.94
Sale Price
$347.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton XTAE015B10TD010 - XT IEC Series,Full voltage non-reversing IEC starter,15 A,24 Vdc,1NO,B frame,45 mm,6-10 A,Screw terminals
Specifications
Starter Auxiliary Contacts
1 NO
Starter Coil Voltage
24 VDC
Starter Reversing Capability
Non-Reversing
Starter Amperage
15 Amp
Manufacturer
Eaton
Component
IEC Non-Reversing Starter
Starter Class
XT
Features
AC control from 12V to 600V 50/60 Hz
DC control from 12V to 220V
Available with screw or spring cage terminals
Reversing or non-reversing contactors and starters
AC-3 contactor ratings to 1000A and AC-1 contactor ratings to 2000A
Non-reversing starters to 650A
Panel or DIN rail mounting to 65A
IP20 finger and back-ofhand proof
Large ambient temperature range, –25 to 50°C [–13 to 122°F]
AC and DC controlled contactors in the same compact frame
Low power consumption AC and DC coils
Built-in NO or NC auxiliary contacts to 32A
Plug-in accessories for reduced installation time
Coil replacement on Frames C–N (18–820A)
Contact replacement on Frames D–N (40 –820A)
Integrated suppressor 7–150A DC operated contactors and 185–2000A AC and DC operated contactors
