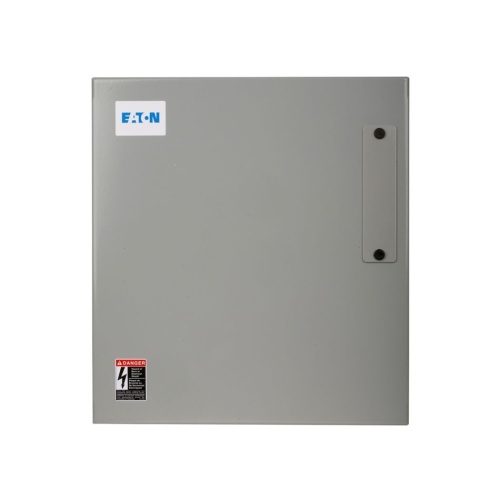

Eaton ECC04C8H6A Mechanically Held Lighting Contactor - 30 Amp, 277 Max Volt
Normally In Stock
Code: 285064
Eaton ECC04C8H6A - Six Pole - 30 Amp - 277 Max Volt - NEMA 12 - A202, CN35 Series - 14.37" x 11" x 17.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$3382.43
Sale Price
$2818.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton ECC04C8H6A - Non-combination mechanically held and magnetically latched, 30A, Painted steel NEMA 12 enclosure, 277V/60 Hz coil, Six-pole
Specifications
Starter Frequency
60 Hz
Starter Coil Voltage
277 VAC
Starter Enclosure Type
NEMA 12
Component
Lighting Contactor
Starter Amperage
30 Amp
Starter Poles
Six Pole
Manufacturer
Eaton
Starter Class
A202
Starter Class
CN35
Sub Component
Mechanically Held
Sub Component
Magnetically Latched
Features
30 A power pole rating
Configurable up to 12 poles maximum
Low magnetic noise results in quiet operation
Power poles latch easily onto the base, and designating them as NO or NC is a simple matter of left or right positioning. Additional poles, either NO or NC, may be easily added at any time
Come in a wide range of input voltages and with coils from 24 Vac to 277 Vac and 12 Vac to 24 Vdc
