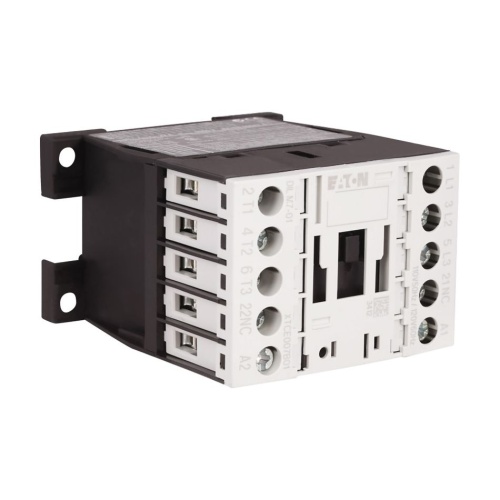

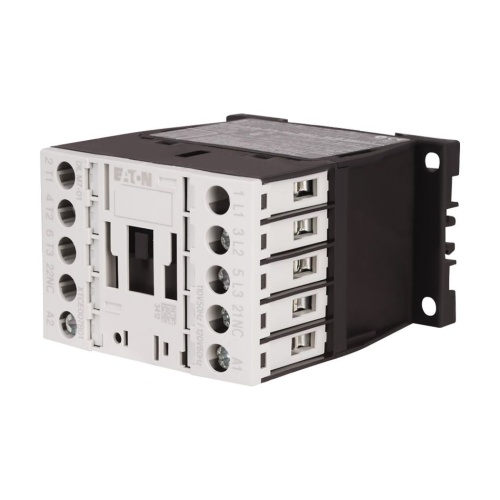

Eaton XTCE018C01H - IEC Non-Reversing Contactor 18 Amp 277 Max Volt
Normally In Stock
Code: 284797
Eaton XTCE018C01H Non-Reversing - Three Pole - 18 Amp - 277 Max Volt - XT IEC Series - 3.9" x 1" x 1" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$165.23
Sale Price
$137.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton XTCE018C01H - 18A, 240 Vac, 50 Hz, 277V 60 Hz, 1NC, 18A, Frame C, 45 mm, 50-60 Hz, 2, 2, 3/ 5, 5, 10, 15 hp (1/3PH @115, 200, 230/200, 230, 460, 575 V), Three-pole, Screw terminals, Full voltage non-reversing contactor
Specifications
Starter Frequency
60 Hz
Starter Coil Voltage
240 VAC
Starter Coil Voltage
277 VAC
Starter Auxiliary Contacts
1 NC
Starter HP
10 HP @ 460 VAC
Starter HP
3 HP @ 230 VAC
Starter HP
2 HP @ 115 VAC
Starter HP
2 HP @ 200 VAC
Starter HP
5 HP @ 200 VAC
Starter Frequency
50 Hz
Component
IEC Contactor
Starter Poles
Three Pole
Starter Reversing Capability
Non-Reversing
Starter Amperage
18 Amp
Starter Voltage
3 Phase
Starter Voltage
1 Phase
Manufacturer
Eaton
Sub Component
IEC Non-Reversing Contactor
Starter HP
5 HP @ 230 VAC
Starter HP
15 HP @ 575 VAC
Starter Class
XT
Features
AC control from 12V to 600V 50/60 Hz
DC control from 12V to 220V
Available with screw or spring cage terminals
Reversing or non-reversing contactors and starters
AC-3 contactor ratings to 1000A and AC-1 contactor ratings to 2000A
Non-reversing starters to 650A
Panel or DIN rail mounting to 65A
IP20 finger and back-ofhand proof
Large ambient temperature range, –25 to 50°C [–13 to 122°F]
AC and DC controlled contactors in the same compact frame
Low power consumption AC and DC coils
Built-in NO or NC auxiliary contacts to 32A
Plug-in accessories for reduced installation time
Coil replacement on Frames C–N (18–820A)
Contact replacement on Frames D–N (40 –820A)
Integrated suppressor 7–150A DC operated contactors and 185–2000A AC and DC operated contactors
