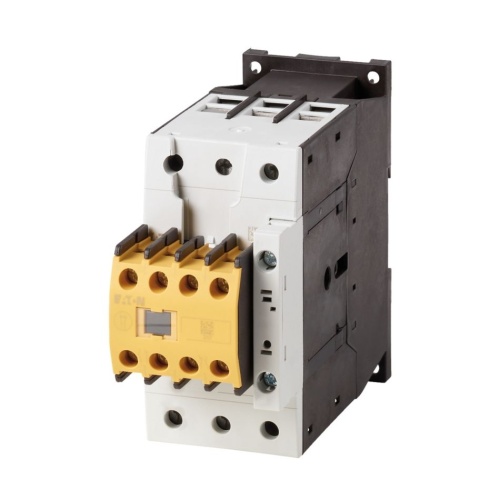

Eaton XTSE065D22TD - IEC Non-Reversing Contactor 60 Amp 24 Max Volt
Normally In Stock
Code: 284315
Eaton XTSE065D22TD Non-Reversing - Three Pole - 60 Amp - 24 Max Volt - XT IEC Series - 2.5" x 2.4" x 3.35" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1084.49
Sale Price
$903.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton XTSE065D22TD - 60A, 24 Vdc, 2NO-2NC, 65A, Frame D, 55 mm, 20, 25, 40, 60 hp (3PH @200/208, 230/240, 460/480, 575, 600 V), Three-pole, Non-reversing, 200-600V, XT IEC series, Full voltage non-reversing safety contactor
Specifications
Starter Auxiliary Contacts
2 NO + 2 NC
Starter Coil Voltage
24 VDC
Component
IEC Contactor
Starter Poles
Three Pole
Starter Reversing Capability
Non-Reversing
Starter Voltage
3 Phase
Starter Amperage
60 Amp
Manufacturer
Eaton
Sub Component
IEC Non-Reversing Contactor
Starter HP
25 HP @ 240 VAC
Starter HP
20 HP @ 208 VAC
Starter HP
60 HP @ 600 VAC
Starter HP
25 HP @ 230 VAC
Starter HP
40 HP @ 460 VAC
Starter HP
20 HP @ 200 VAC
Starter HP
60 HP @ 575 VAC
Starter HP
40 HP @ 480 VAC
Starter Class
XT
Features
Clear Inspection Window: The clear inspection window located on top of the auxiliary contact prevents the contactor from being manually activated and also allows for safe status monitoring for the user
Rated for Highest Safety Characteristics: 1. XTSE contactors are able to integrate to safety circuits for up to category 4, Pl e and SIL 3 applications, SUVA Certified
Safety Agency Approval: 1. Integrated front-mounted auxiliary contacts 2. XTSE contactors utilize a new enhanced latching mechanism to prevent removal of the auxiliary contact
