Code: 283691

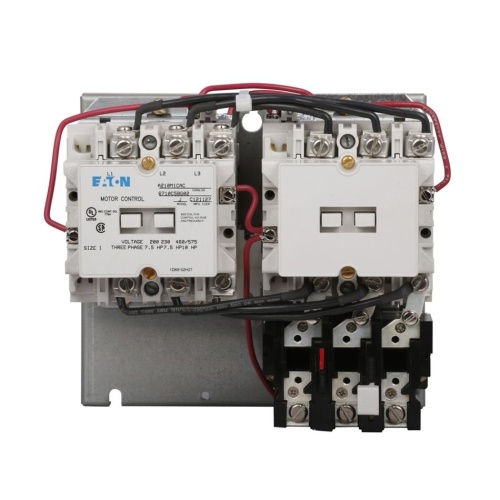

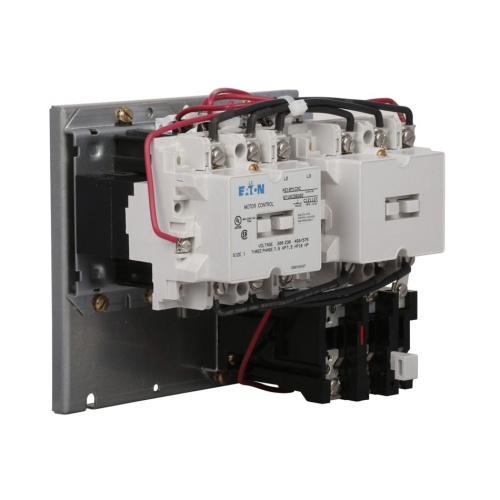

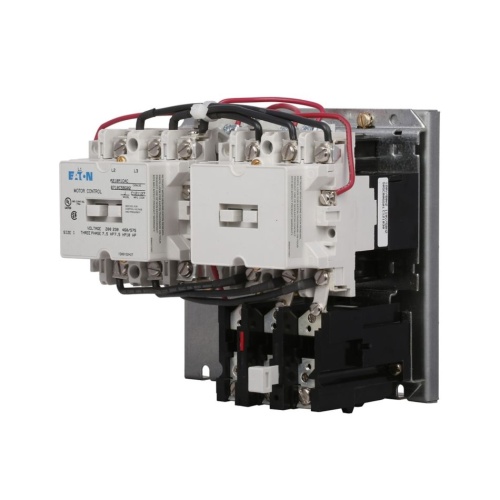

Eaton A250M1CX Reversing Motor Control Starter 480 Max Volt
Normally In Stock
Eaton A250M1CX Motor Control Starter - Size 1 - 480 Max Volt - 27 Amp - Three Pole
Condition: New
Usually ships Same Day or Next Day$4602.36
Sale Price
$3835.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton A250M1CX - Reversing Starter - Vertical design - 480V/60 Hz coil voltage - 27A - Three-pole - Size 1 - 2 hp at 115V - 3 hp at 230V - 7-1/2 hp at 208 - 240V - 10 hp at 480 - 600V - A200 series
Specifications
Starter NEMA Size
1
Starter Frequency
60 Hz
Starter Coil Voltage
480 VAC
Starter HP
3 HP @ 230 VAC
Starter HP
2 HP @ 115 VAC
Starter Poles
Three Pole
Starter Amperage
27 Amp
Starter Reversing Capability
Reversing
Manufacturer
Eaton
Starter Class
A200
Component
Motor Control Starter
Starter HP
7.5 HP @ 208 VAC
Starter HP
10 HP @ 480 VAC
Starter HP
7.5 HP @ 240 VAC
Starter Phase
Three Phase
Features
An A200, A210, or A250 motor controller will operate as a full-voltage starter and will give protection against overload, but not against short-circuit currents when wired and provided with overload relay (OLR) heaters as listed in heater selection tables or when used with any means of inherent protection activated by motor temperature.
