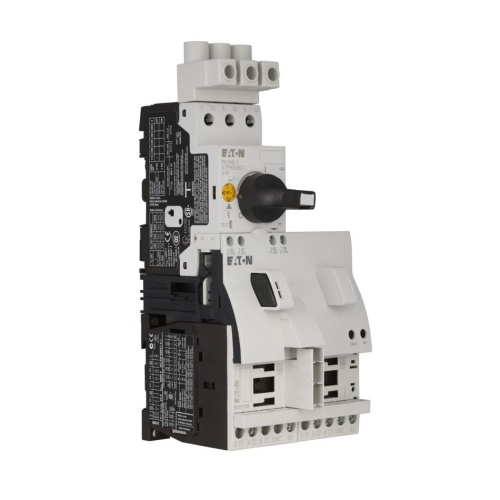

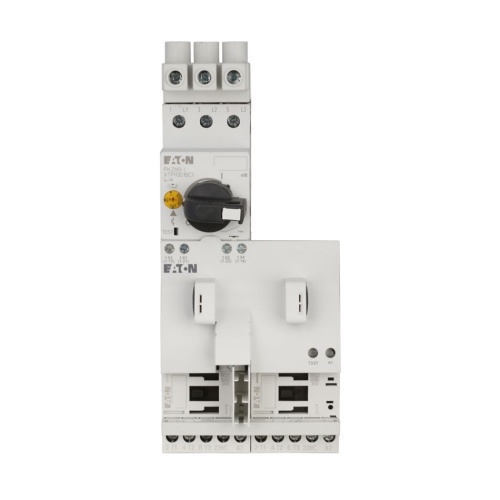

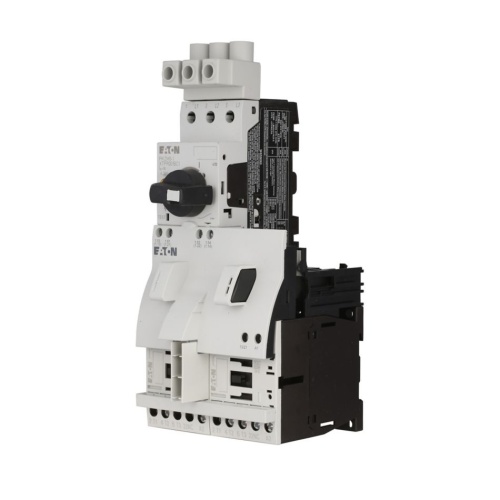

Eaton XTFR1P6BCD Reversing Combination Motor Controller 600 Max Volt
Normally In Stock
Code: 282161
Eaton XTFR1P6BCD Combination Motor Controller - 600 Max Volt - 1.60 Amp
Condition: New
Usually ships Same Day or Next Day$563.90
Sale Price
$469.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton XTFR1P6BCD - XT IEC Full Voltage Reversing Combination Motor Controller - 1.6A - 45 mm Frame size - 550V 50 Hz - 600V 60 Hz coil
Specifications
Starter Frequency
60 Hz
Starter Coil Voltage
550 VAC
Starter Frequency
50 Hz
Starter Reversing Capability
Reversing
Starter Amperage
1.6 Amp
Manufacturer
Eaton
Component
Combination Motor Controller
Starter Maximum Voltage
600 VAC
Features
ON/OFF rotary handle with lockout provision
Visible trip indication
Test trip function
Motor applications from 0.10A to 65A
Class 10 overload protection
Built-in heater and magnetic trip elements to protect the motor
Phase loss sensitivity
Type 2 coordination
Ambient compensated up to 55°C [140°F]
Control inputs located at front of starter for easy access and wiring
Wide range of coils
DIN rail mount— XTSC…BB_
Mounting plates— XTSC…BC_, XTSC…D motor controllers
Adjustment dial for setting motor FLA
Short-circuit trip at 14 times the maximum setting of the FLA adjustment dial
UL 508 Type F and Type E CMC high fault short-circuit ratings
1NO-1NC auxiliary contact as standard on manual motor controller and combination motor controller
