Code: 282160

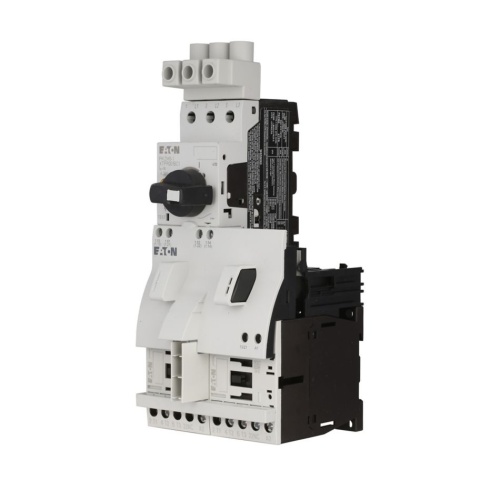

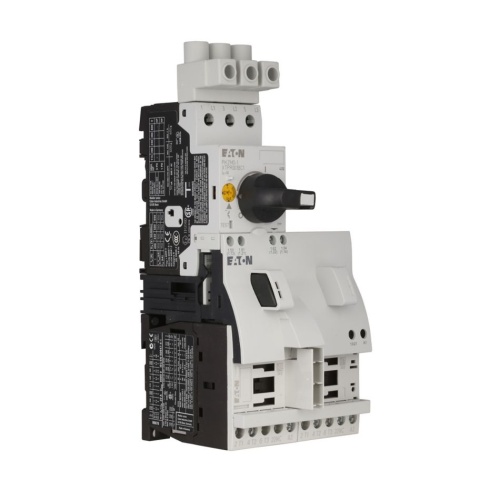

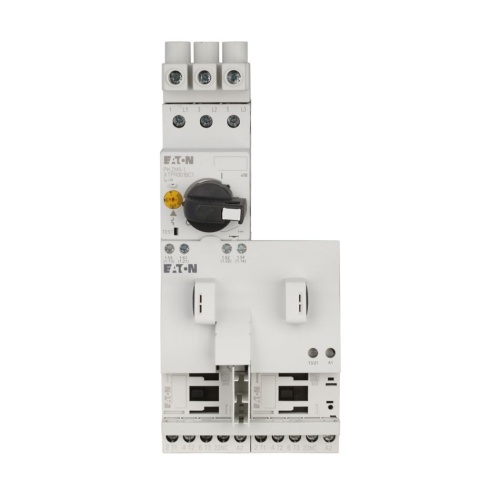

Eaton XTFR063DDY Reversing Combination Motor Controller 48 Max Volt
Normally In Stock
Eaton XTFR063DDY Combination Motor Controller - 48 Max Volt - 63 Amp
Condition: New
Usually ships Same Day or Next Day$2290.72
Sale Price
$1908.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton XTFR063DDY - 63 A - 48V 50 Hz - 1NO-1NC auxilary contact - Frame D - 55 mm - 16 to 63 A - Built in heater - Magnetic trip elements - Type 2 Coordination - Frame Size D - 55 mm - 40 to 65 A
Specifications
Starter Coil Voltage
48 VAC
Starter Auxiliary Contacts
1 NO + 1 NC
Starter Frequency
50 Hz
Starter Reversing Capability
Reversing
Manufacturer
Eaton
Component
Combination Motor Controller
Starter Amperage
63 Amp
Features
ON/OFF rotary handle with lockout provision
Visible trip indication
Test trip function
Motor applications from 0.10A to 65A
Class 10 overload protection
Built-in heater and magnetic trip elements to protect the motor
Phase loss sensitivity
Type 2 coordination
Ambient compensated up to 55°C [140°F]
Control inputs located at front of starter for easy access and wiring
Wide range of coils
DIN rail mount— XTSC…BB_
Mounting plates— XTSC…BC_, XTSC…D motor controllers
Adjustment dial for setting motor FLA
Short-circuit trip at 14 times the maximum setting of the FLA adjustment dial
UL 508 Type F and Type E CMC high fault short-circuit ratings
1NO-1NC auxiliary contact as standard on manual motor controller and combination motor controller
