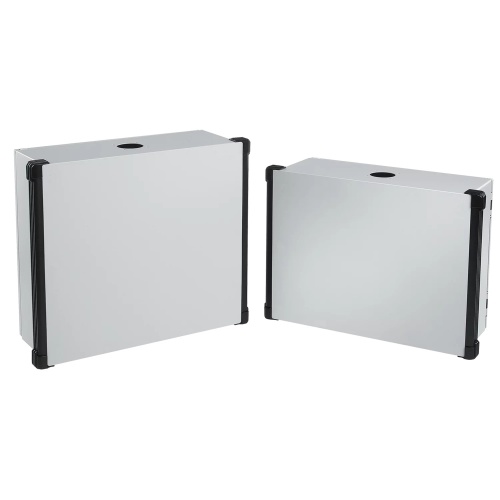

nVent Hoffman CP556012 CONCEPT HMI Steel Enclosure
Normally In Stock
Code: 2757
nVent Hoffman CP556012 HMI Enclosure Steel with Black Extrusions 21.85 x 23.62 x 4.72 inch (HxWxD) CONCEPT Type 4 Steel HMI Enclosure with Hinged rear corner-formed door has a single-point latch. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)$1673.57
Sale Price
$1394.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CP556012 HMI Enclosure Steel with Black Extrusions 21.85 x 23.62 x 4.72 inch (HxWxD) This nVent Hoffman CONCEPT HMI steel enclosure has has many options for customization. With pendant or pedestal mounting, a removable front plate, the ability for cutouts anywhere in the enclosure, this enclosure is sure to be versatile enough for many different spaces. This CONCEPT HMI enclosure has a hinged rear corner-formed door with a single-point latch and an a comfort grip on the handle estrusions that run the length of the profile. The standard color of this nVent Hoffman enclosure is black with an aluminum front plate, and there are four accent colors, blue, purple, red or turquoise, for the integral handle extrusions and the end caps, making this enclosure perfect for a variety of projects.
Specifications
HMI Depth
5.0"
HMI Environment Rating
Outdoor-Indoor
HMI Door Type
Solid
HMI Composition
Steel
HMI Interior Color
Gray
HMI Width
24.0"
HMI Height
22.0"
HMI Mount Type
Pendant/Pedestal Mount
Line
CONCEPT
Component
HMI Enclosure
HMI NEMA Rating
NEMA Type 4
HMI NEMA Rating
NEMA Type 12
HMI Number of Doors
1 Door
Manufacturer
Hoffman
Features
Aluminum removable front plate is .125-in aluminum
Integral aluminum handle extrusions have a comfort grip that extends the length of the profile, available in black or blue
Hinged rear corner-formed door has a single-point latch, seamless foam-in-place gasket and panel studs
Grounding stud on body, bonding provision on door
Pedestal mounting when enclosure is inverted
Pre-drilled hole in top for pendant arm mounting
Simple easy-to-remove and install hinge pins with built-in captive clip
High-torque threadless studs and fasteners on door for mounting optional door panel
Downloads
Hoffman CP556012 2D DXF CAD.zipHoffman CP556012 3D STEP CAD.zipHoffman CP556012 CAD Drawing.zipHoffman CP556012 Declaration of Compliance.pdfHoffman CP556012 Dimension Drawing.gifHoffman CP556012 EU Certification.pdfHoffman CP556012 Instruction Manual.pdfHoffman CP556012 Spec Sheet.pdfHoffman CP556012 UL Certification.pdfHoffman CP556012 User Manual.pdf
