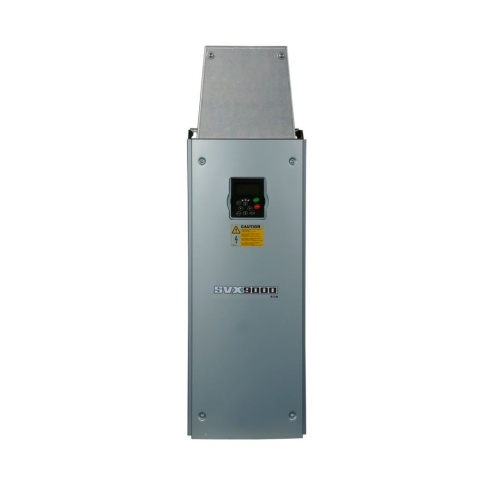

Eaton SVX100A1-4A1N1B4B8B9 SVX Drive 100 HP 480 Volt Three Phase
Normally In Stock
Code: 273672
Eaton SVX100A1-4A1N1B4B8B9 - 480 Volt Three Phase - 100 HP - NEMA 1, IP21 - FS8 Frame - 30.1" x 11.5" x 13.5" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$30008.86
Sale Price
$25007.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton SVX100A1-4A1N1B4B8B9 - 100HP - NEMA Type 1/IP21 - 480V - FR8 - Three phase - EMC H - Alphanumeric keypad - No brake chopper - Ext. I/O Card O: 1 AI(mA iso)2 AO(mA iso)1 ext +24 Vdc/EXT +24 Vdc - 1 ext +24 Vdc/EXT +24 Vdc 3 Pt100 - 1 RO(NO)5 DI 42-240 Vac input
Specifications
VFD Amperage Output
11 Amp
VFD Horsepower Output
100 HP
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 1
VFD NEMA-IP Rating
IP21
Manufacturer
Eaton
VFD Line
SVX
VFD Frame Type
FS8
VFD Brake
No Brake Chopper
Features
Ease of use: Startup Wizard, seven built-in applications, local/remote button, modular design, text display
Space-saving design: Compact design, open NEMA12 option, onboard I/O expansion provisions
Efficiency: Built-in 3% line reactor, EMI/RFI filter standard
Rugged and reliable: High overload (CT) and low overload (VT) rated, robust time-proven design, durable metal power section, brake chopper circuit
