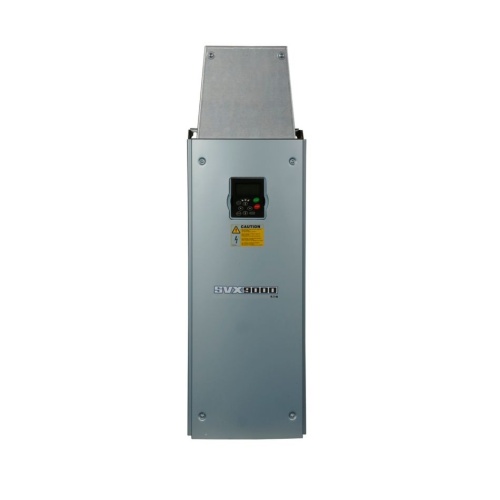

Eaton SVX100A1-4A1N1B4B5C8 SVX Drive 100 HP 480 Volt Three Phase
Normally In Stock
Code: 273670
Eaton SVX100A1-4A1N1B4B5C8 - 480 Volt Three Phase - 100 HP - NEMA 1, IP21 - FS8 Frame - 30.1" x 11.5" x 13.5" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$29399.57
Sale Price
$24499.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton SVX100A1-4A1N1B4B5C8 - 100HP - NEMA Type 1/IP21 - 480V - FR8 - Three phase - EMC H - Alphanumeric keypad - No brake chopper - Extended I/O Card Options 1 AI(mA isolated)2 AO(mA isolated)1 ext +24 Vdc/EXT +24 Vdc - 3 RO(NO) - Com Options Modbus(D9 Type connector)
Specifications
VFD Amperage Output
11 Amp
VFD Horsepower Output
100 HP
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 1
VFD NEMA-IP Rating
IP21
Manufacturer
Eaton
VFD Line
SVX
VFD Frame Type
FS8
VFD Brake
No Brake Chopper
Communication
Modbus
Features
Ease of use: Startup Wizard, seven built-in applications, local/remote button, modular design, text display
Space-saving design: Compact design, open NEMA12 option, onboard I/O expansion provisions
Efficiency: Built-in 3% line reactor, EMI/RFI filter standard
Rugged and reliable: High overload (CT) and low overload (VT) rated, robust time-proven design, durable metal power section, brake chopper circuit
