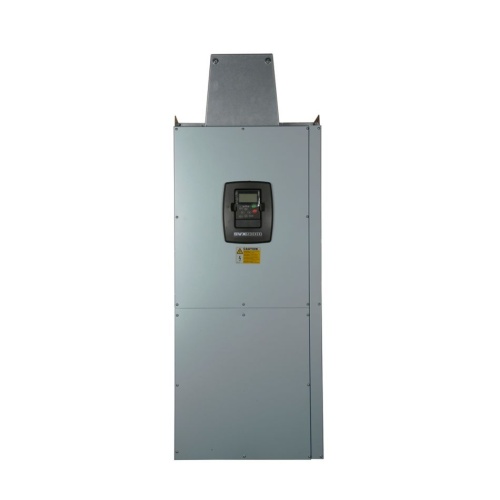

Eaton SVX200A1-4A1N1B4B8C6 SVX Drive 200 HP 480 Volt Three Phase
Normally In Stock
Code: 273650
Eaton SVX200A1-4A1N1B4B8C6 - 480 Volt Three Phase - 200 HP - NEMA 1, IP21 - FS9 Frame - 45.3" x 18.9" x 13.4" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$52027.68
Sale Price
$43356.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton SVX200A1-4A1N1B4B8C6 - 200HP - NEMA Type 1/IP21 - 480V - FR9 - Three phase - EMC H - Alphanumeric keypad - No brake chopper - Ext. I/O Card O: 1 AI(mA isolated)2 AO(mA isolated)1 ext +24 Vdc/EXT +24 Vdc - 1 ext +24 Vdc/EXT +24 Vdc 3 Pt100 - Com O: CanOpen(slave)
Specifications
VFD Horsepower Output
200 HP
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 1
VFD NEMA-IP Rating
IP21
Manufacturer
Eaton
VFD Line
SVX
VFD Frame Type
FS9
VFD Brake
No Brake Chopper
Communication
Canopen
Features
Ease of use: Startup Wizard, seven built-in applications, local/remote button, modular design, text display
Space-saving design: Compact design, open NEMA12 option, onboard I/O expansion provisions
Efficiency: Built-in 3% line reactor, EMI/RFI filter standard
Rugged and reliable: High overload (CT) and low overload (VT) rated, robust time-proven design, durable metal power section, brake chopper circuit
