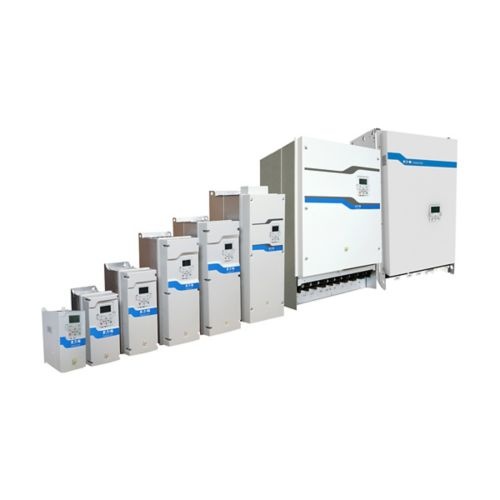

Eaton ACE-DG1-100-LR-PT ACE DG1 Drive 100 HP 480 Volt Three Phase
Normally In Stock
Code: 273472
Eaton ACE-DG1-100-LR-PT - 480 Volt Three Phase - 100 HP - NEMA 7 - DG1 Frame - 18.59" x 29.5" x 70.75" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$140026.40
Sale Price
$116688.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton ACE-DG1-100-LR-PT - Actively-Cooled PowerXL DG1 - NEMA 7 ENCLOSED - 480V - 100HP Variable Torque - LOC/REM - POT - Three-in/three-out - Start/Stop/Reset pushbuttons - Fault/Run/Stop Indicating Lights
Specifications
VFD Torque
Variable Torque
VFD Horsepower Output
100 HP
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
Manufacturer
Eaton
VFD NEMA-IP Rating
NEMA 7
VFD Line
ACE DG1
VFD Frame Type
DG1
Features
ACE explosionproof VFDs are installed 'on-machine' inside the hazardous areas, eliminating expensive, complicated installations
There is no need to run long lines of conduit and motor cable, dig up roadways and sidewalks, navigate around obstacles and hazards or build off-site control rooms in non-hazardous areas to house VFD clusters
Reflected Wave Syndrome is eliminated due to short motor cable runs
Drives available up to 100 HP
Improved temperature rating: -30°C to +50°C (up to 75 HP)
-30°C to +40°C (100 HP)
Standard features include:
EtherNet/IP
Modbus TCP
RS-485: Modbus RTU
BACnet MS/TP
