Code: 2731

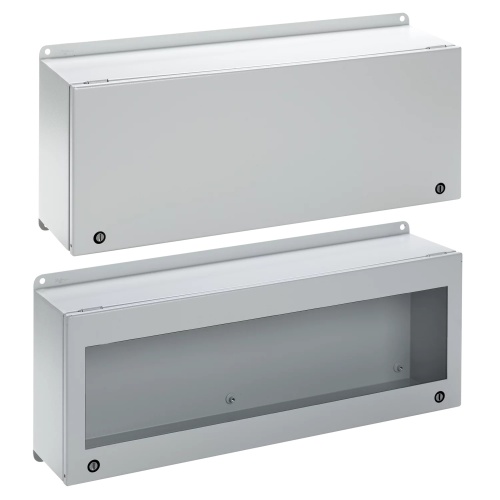

nVent Hoffman LWC239316 INLINE Window Steel Enclosure
nVent Hoffman LWC239316 9" x 36.61" x 6" Type 3,Type 4,Type 12 Wall Mount Mild Steel Window Door Enclosure with hinged cover and quarter turn latches. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$475.20
Sale Price
$396.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman LWC239316 INLINE Window Steel Enclosure INLINE Steel Enclosure with Window Door and aesthetic styling, with an attractive, durable light-gray finish, where style and functionality are important. Outward formed flange to prevent contaminants from entering the enclosure. Hinged door with quarter turn latches, large perimeter body opening, stay in place door gasket, grounding stud on body, bonding provision on door. Includes hardware kit screws for panel mounts, grounding hardware, sealing washers for hole openings. Studs for adding backplate for mounting equipment.
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
Gray
Enclosure Door Type
Window
Enclosure Composition
Painted Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure Height
9"
Enclosure Width
36.61"
Line
Inline
Enclosure Mount Type
Wall Mount
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
External welded-on mounting brackets for easy installation
External formed body flange channels away liquids
Large perimeter body opening
Bonding provision on cover and door
Seams continuously welded and ground smooth
Metric dimensions
Hardware kit includes panel mounting screws and grounding hardware
Window door models include flush-mounted 4.8-mm (3/16-in.) clear polycarbonate window
Door opens 180 degrees
Self-grounding, slotted quarter-turn latches
Removable hinged door
Seamless foam-in-place gasket
Downloads
Hoffman LWC239316 2D DXF CAD.zipHoffman LWC239316 3D STEP CAD.zipHoffman LWC239316 CAD Drawing.zipHoffman LWC239316 CSA Certification.pdfHoffman LWC239316 Declaration of Compliance.pdfHoffman LWC239316 EU Certification.pdfHoffman LWC239316 Instruction Manual.pdfHoffman LWC239316 Spec Sheet.pdfHoffman LWC239316 UL Certification.pdfHoffman LWC239316 User Manual.pdf
