Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 27273

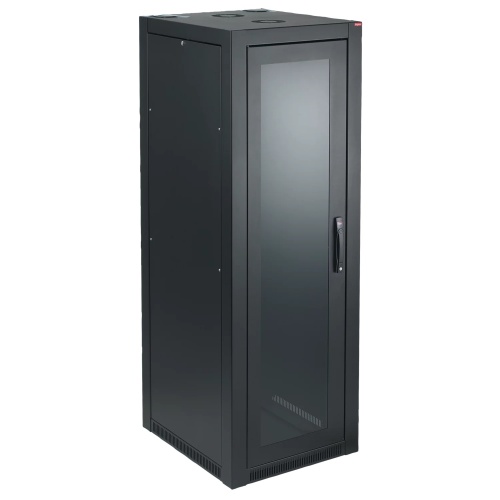

nVent Hoffman ENC21712S 85.0"x28.0"x48.0" Network Seismic Cabinet
nVent Hoffman ENC21712S 85.0"x28.0"x48.0" Free Standing Network Seismic Cabinet
Condition: New
Usually ships Same Day or Next Day$8348.40
Sale Price
$6957.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman ENC21712S 85.0"x28.0"x48.0" Free Standing Network Seismic Cabinet
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Door Type
Window
Enclosure Mount Type
Free-Standing
Dual Access Enclosures
Dual Access Enclosure
Component
Seismic Cabinet
Seismic Component Height
85.0"
Seismic Component Width
28.0"
Seismic Component Rack Units
45
Seismic Component Rack Spacing
19"
Seismic Component Composition
Painted Steel
Seismic Component Interior Color
Gray
Seismic Component Interior Color
Black
Seismic Component Depth
48.0"
Enclosure Number of Doors
1 Door
Manufacturer
Hoffman
Enclosure Latch Type
3-Point
Seismic Component Lock Type
Keylock
Features
Doors and side panels inset flush with frame
Same key provides access to all doors and side panels
Doors and side panels are removable for easier equipment installation and upgrades
Vented, heavy gauge steel base is designed to bolt to floor with seismic-rated fasteners
Both front and rear doors are hinged left and equipped with key-lock flush handle and 3-point latching
ENC2189S can be configured for 19- or 23-inch rack mounting by reversing the rack angles
Heavy gauge welded steel frame provides structural integrity in the presence of seismic activity
Downloads
Hoffman ENC21712S 2D DXF CAD.zipHoffman ENC21712S 3D STEP CAD.zipHoffman ENC21712S Components Drawing.gifHoffman ENC21712S Declaration of Compliance.pdfHoffman ENC21712S Dimension Drawing.gifHoffman ENC21712S Instruction Manual.pdfHoffman ENC21712S OSHPD OPM Calculations.pdfHoffman ENC21712S OSHPD OPM, Seismic Cabinet.pdfHoffman ENC21712S Spec Sheet.pdf
