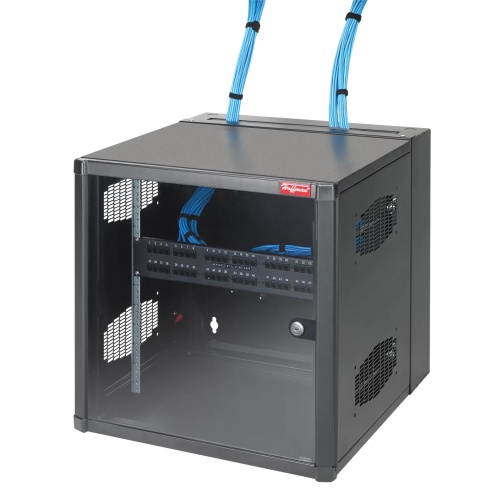

Hoffman EWMWG482825 48"x29.0"x26.0" AccessPlus Double-Hinge, Type 1 Network Cabinet
Hoffman EWMWG482825 48"x29.0"x26.0" Wall Mount AccessPlus Double-Hinge, Type 1 Network Cabinet (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $2039.70
Sale Price:
$1694.52
Hoffman EWMWG482825 48"x29.0"x26.0" AccessPlus Double-Hinge, Type 1 Network Cabinet AccessPlus Cabinets provide security, equipment access, cooling and support for network and other 19-in. rack-mount equipment. The cabinet has three components: front door, center section and wall section.
| Specifications | |
| Enclosure knockouts | Includes Knockouts |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Latch Type | Quarter Turn |
| Enclosure Door Type | Window |
| Enclosure Lock Type | Keylocking |
| Enclosure Interior Color | Black |
| Rack Units | 26 |
| Enclosure Height | 48" |
| Enclosure Width | 29" |
| Load Rating | 350 lbs. |
| Manufacturer | Hoffman |
| Line | ACCESSPLUS |
| Enclosure Depth | 26" |
| Enclosure Environment Rating | Indoor |
| Enclosure Mount Type | Wall Mount |
| Enclosure Composition | Steel |
| Component | Network Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 1 |
| Enclosure Type | AccessPlus Double-Hinge Cabinet |
- Wall section provides cable entry and cable management with knockouts or gland plates
- Center section easily removed from rear section, tool-less one person installation possible
- Self-grounding, plated steel rack angles fully adjustable within center section
- Gland plate model provides easy retrofit and fast installation and allows for pre-terminated cables or pre-wired patch panels, no need to re-terminate and test
- Front door has either a solid steel or hardened, tinted safety-glass window door for superior scratch resistance
- Double-hinged for easy equipment access, center section provides 19-in. rack mounting per EIA universal spacing and is accessed through the front door or swing the center section away from the wall section for rear access
- Self-locking center-to-wall section latches in two locations
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front to-back, is provided with each center section of the cabinet, additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Vertical cable manager included in 28-in.-wide models
- Vented sides provide cross flow ventilation to improve heat dissipation
- Front access to all latches (no exposed side latches), cabinet can be installed tightly in corners
Customer Reviews
0.0
All Reviews
Hoffman EWMWG482825 2D DXF CAD.zip
Hoffman EWMWG482825 3D STEP CAD.zip
Hoffman EWMWG482825 Declaration of Compliance.pdf

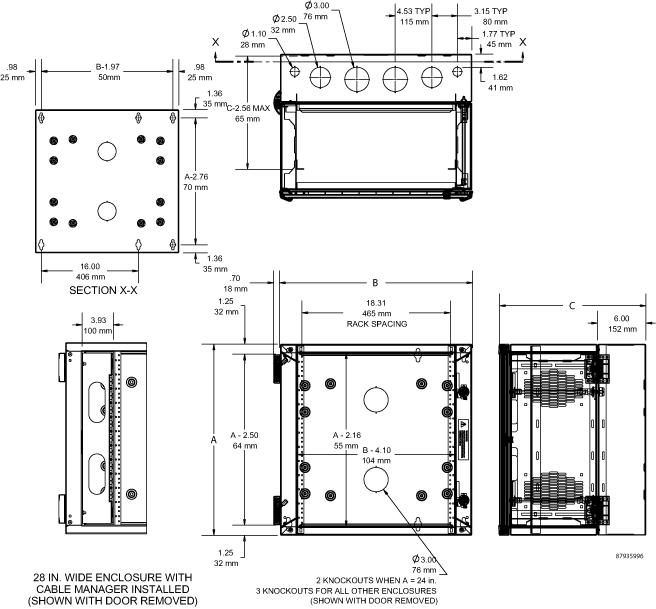

Hoffman EWMWG482825 Dimension Drawing.gif
Hoffman EWMWG482825 EU Certification.pdf
Hoffman EWMWG482825 Instruction Manual.pdf
Hoffman EWMWG482825 Spec Sheet.pdf
Hoffman EWMWG482825 UL Certification.pdf
