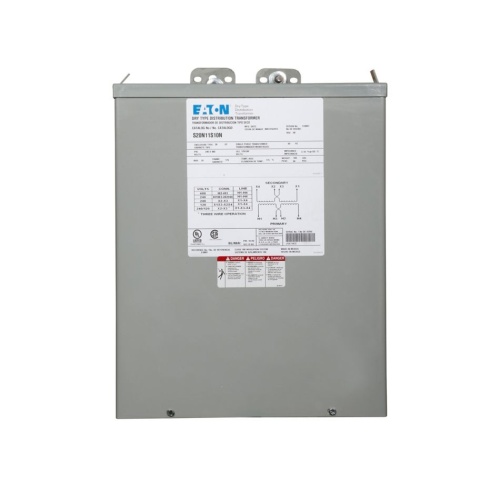

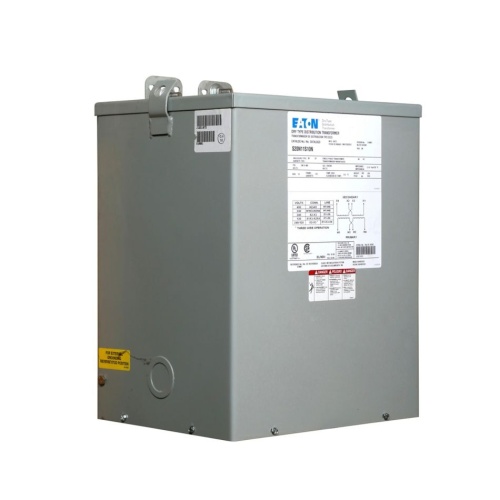

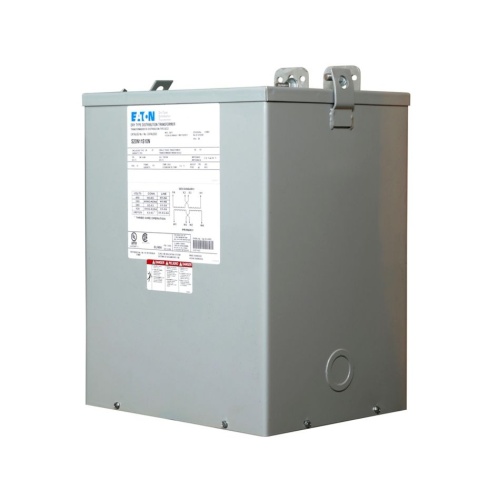

Eaton QS20N11S16CU Marine Duty Encapsulated Transformer - 1500 kVA Single Phase
Normally In Stock
Code: 267729
Eaton QS20N11S16CU - Single Phase - 1500 kVA - Primary Voltage: 240/480V - Secondary Voltage: 120/240V - 13.41" x 6.37" x 6.52" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1564.09
Sale Price
$1303.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton QS20N11S16CU - EPM, copper, NEMA 3R, 67, 60 Hz, single-phase, 240 V, 480 V, 120/240 V, NONE, 115 °C rise, 1.5 KVA, indoor-outdoor, 3A16Q
Specifications
Transformer Voltage Phases
Single Phase
Manufacturer
Eaton
Component
Marine Duty Encapsulated Transformer
Transformer VoltAmp
1500 Kva
Transformer Primary Voltage In
480V
Transformer Secondary Voltage Out
208Y/120V
Features
Encapsulated transformers are specifically excluded from the scope of U.S. DOE energy efficiency requirements
Encapsulated transformers are available in aluminum or copper windings
Standard 115°C temperature rise
80°C optional. Insulation class 180°C
Optional low-sound 3dB and 5dB below NEMA ST-20 standard
Available in 60 and 50 Hz
Standard NEMA 3R enclosures
Cores are grounded with a copper lead
