Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 267713

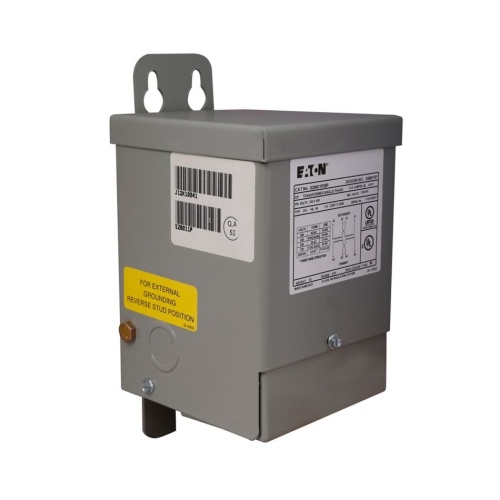

Eaton QS20N11S81CU Marine Duty Encapsulated Transformer - 50 kVA Single Phase
Normally In Stock
Eaton QS20N11S81CU - Single Phase - 50 kVA - Primary Voltage: 240/480V - Secondary Voltage: 120/240V - 8.91" x 4.11" x 4" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$378.60
Sale Price
$315.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton QS20N11S81CU - EPM, copper, NEMA 3R, 52, 60 Hz, single-phase, 240 V, 480 V, 120/240 V, NONE, 115 °C rise, 0.05 KVA, indoor-outdoor, 3A050Q
Specifications
Transformer Voltage Phases
Single Phase
Transformer VoltAmp
50 Kva
Manufacturer
Eaton
Component
Marine Duty Encapsulated Transformer
Transformer Primary Voltage In
480 Volt
Transformer Secondary Voltage Out
208Y/120 Volt
Features
Encapsulated transformers are specifically excluded from the scope of U.S. DOE energy efficiency requirements
Encapsulated transformers are available in aluminum or copper windings
Standard 115°C temperature rise
80°C optional. Insulation class 180°C
Optional low-sound 3dB and 5dB below NEMA ST-20 standard
Available in 60 and 50 Hz
Standard NEMA 3R enclosures
Cores are grounded with a copper lead
