Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 267245

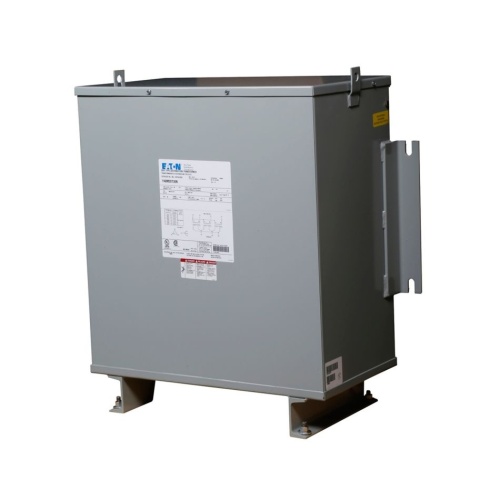

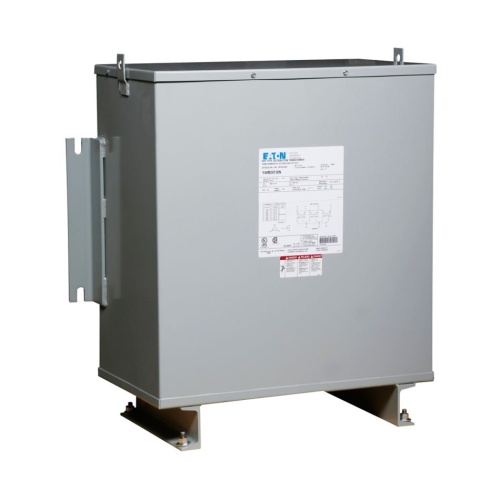

Eaton Y48M24T45N Encapsulated Transformer - 45 kVA Three Phase
Normally In Stock
Eaton Y48M24T45N - Three Phase - 45 kVA - Primary Voltage: 480V - Secondary Voltage: 240V - 28.15" x 26.58" x 14.66" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$31079.46
Sale Price
$25899.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton Y48M24T45N EPT, aluminum, NEMA 3R, 244, 60 Hz, three-phase, 480 V, 240 V, 2 at +2.5% FCAN, 4 at -2.5% FCBN, 115 °C rise, 45 KVA, indoor-outdoor, 85A
Specifications
Transformer Voltage Phases
Three Phase
Transformer VoltAmp
45 Kva
Manufacturer
Eaton
Component
Encapsulated Transformer
Transformer Secondary Voltage Out
240V
Transformer Primary Voltage In
480V
Features
Encapsulated transformers are specifically excluded from the scope of U.S. DOE energy efficiency requirements
Encapsulated transformers are available in aluminum or copper windings
Standard 115°C temperature rise
80°C optional. Insulation class 180°C
Optional low-sound 3dB and 5dB below NEMA ST-20 standard
Available in 60 and 50 Hz
Standard NEMA 3R enclosures
Cores are grounded with a copper lead
