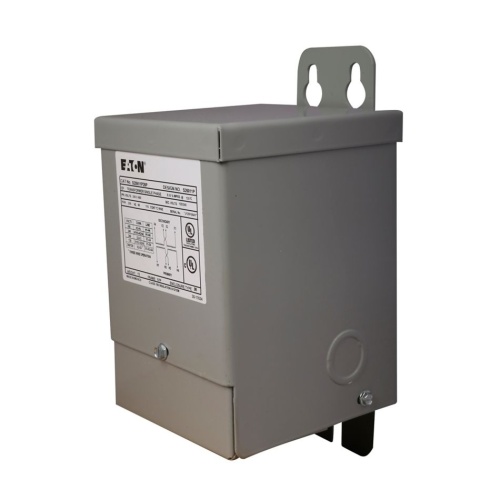

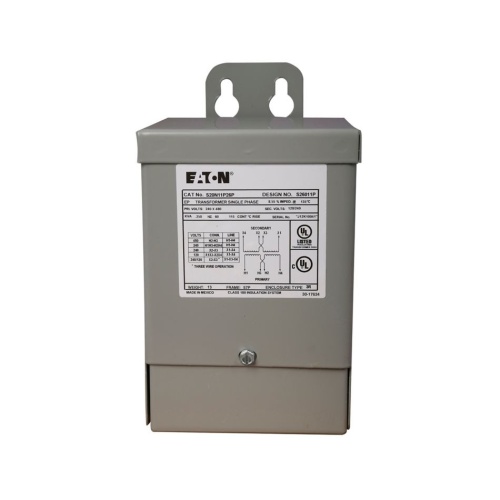

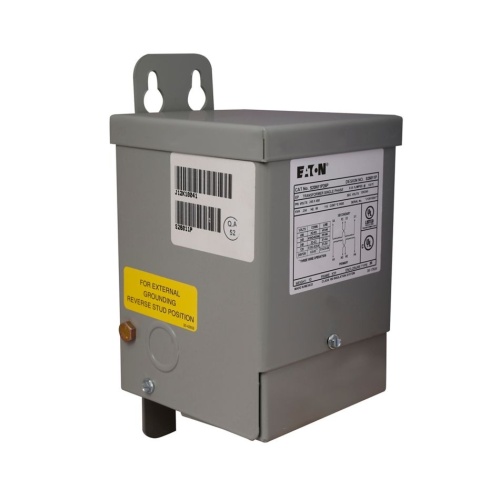

Eaton S27N11S51CU Encapsulated Transformer - 500 VA Single Phase
Normally In Stock
Code: 266950
Eaton S27N11S51CU - Single Phase - 500 VA - Primary Voltage: 277V - Secondary Voltage: 120/240V - 11.28" x 5.99" x 5.75" (HxWxD)
Condition: New
CALL FOR LEAD TIME$1192.60
Sale Price
$993.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton S27N11S51CU EP, copper, NEMA 3R, 58A, 60 Hz, single-phase, 277 V, 120/240 V, NONE, 115 °C rise, 0.5 KVA, indoor-outdoor, 524A
Specifications
Transformer Voltage Phases
Single Phase
Manufacturer
Eaton
Component
Encapsulated Transformer
Transformer Primary Voltage In
600V
Transformer Secondary Voltage Out
120V
Transformer Secondary Voltage Out
240V
Transformer VoltAmp
0.5 Kva
Features
Encapsulated transformers are specifically excluded from the scope of U.S. DOE energy efficiency requirements
Encapsulated transformers are available in aluminum or copper windings
Standard 115°C temperature rise
80°C optional. Insulation class 180°C
Optional low-sound 3dB and 5dB below NEMA ST-20 standard
Available in 60 and 50 Hz
Standard NEMA 3R enclosures
Cores are grounded with a copper lead
