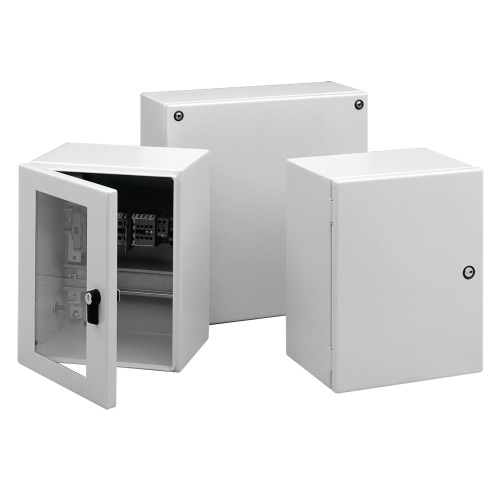

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
nVent Hoffman LHC151512 INLINE Steel Enclosure
Normally In Stock
Code: 2669
nVent Hoffman LHC151512 6" x 6" x 5" Type 3,Type 4,Type 12 Outdoor-Indoor Wall Mount Mild Steel Enclosure with hinged cover and quarter turn latches. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$133.82
Sale Price
$111.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman LHC151512 INLINE Steel Enclosure INLINE Steel Enclosure with aesthetic styling, with an attractive, durable light-gray finish, where style and functionality are important. Outward formed flange to prevent contaminants from entering the enclosure. Hinged door with quarter turn latches, large perimeter body opening, stay in place door gasket, grounding stud on body, bonding provision on door. Includes hardware kit screws for panel mounts, grounding hardware, sealing washers for hole openings. Studs for adding backplate for mounting equipment.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Depth
5"
Enclosure Interior Color
Gray
Enclosure Door Type
Window
Enclosure Composition
Painted Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure Width
6"
Line
Inline
Enclosure Mount Type
Wall Mount
Enclosure Height
6"
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Large perimeter body opening
Seams continuously welded and ground smooth
External formed body flange channels away liquids
Mounting holes in back of body for direct mounting or optional external mounting brackets
16 gauge steel
Metric dimensions
Seamless foam-in-place gasket
Installation instructions
Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
Bonding provision on the door
Grounding stud on the body
Downloads
Hoffman LHC151512 2D DXF CAD.zipHoffman LHC151512 3D STEP CAD.zipHoffman LHC151512 CAD Drawing.zipHoffman LHC151512 CSA Certification.pdfHoffman LHC151512 Declaration of Compliance.pdfHoffman LHC151512 Dimension Drawing.gifHoffman LHC151512 EU Certification.pdfHoffman LHC151512 Instruction Manual.pdfHoffman LHC151512 Spec Sheet.pdfHoffman LHC151512 User Manual.pdf
