Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

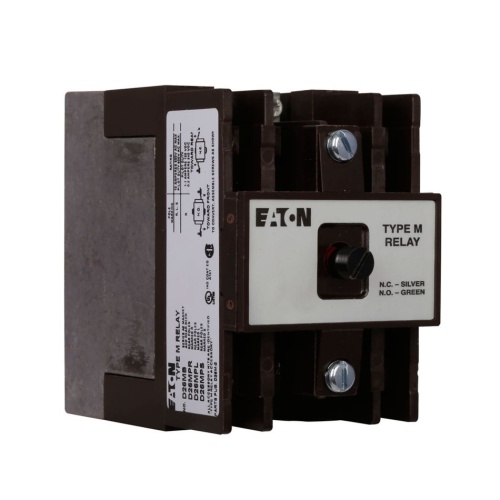

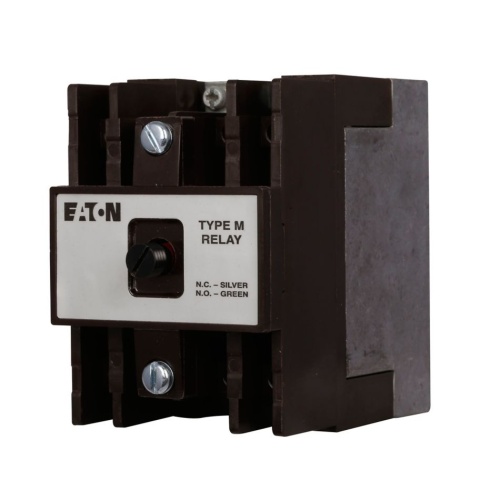

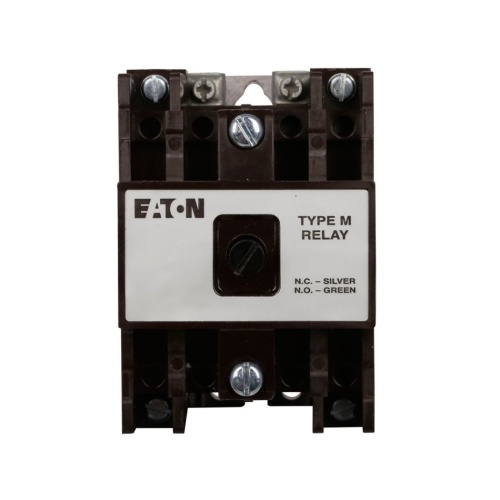

Eaton D26MBA1 Machine Tool Relay - 4P120 Volt Coil
Normally In Stock
Code: 264533
Eaton D26MBA1 Machine Tool Relay - Four Pole - Single Throw Blank - 120 Volt Coil
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$282.17
Sale Price
$235.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton D26MBA1 - D26 Series AC Relay Base Assembly, Four-pole, 120 Vdc coil voltage, Blank contact configuration, 0 blank cavities
Specifications
Relay Poles
Four Pole
Coil Voltage Rating
120 Volt
Manufacturer
Eaton
Component
Machine Tool Relay
Relay Throws
Single Throw Blank
Relay UL Rating
UL Listed Class NKCR2
Relay UL Rating
CSA File No. LR353
Relay UL Rating
UL Listed File E1230
Features
Contact pole terminals have captive, backed-out, self-lifting pressure plates for reduced wiring time
Terminals are shrouded or “finger-proofed” to reduce possibility of electrical shock
Wide spacing of contacts simplifies installation, contact testing and maintenance
Contacts are electrically and mechanically isolated from each other for added safety
Surge suppressors mount in contact cavity, limiting high transient voltages resulting from de-energizing relay coil, for protection of sensitive instruments and solid-state devices
