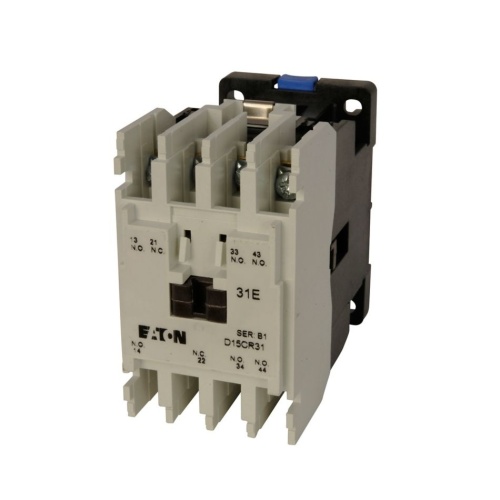

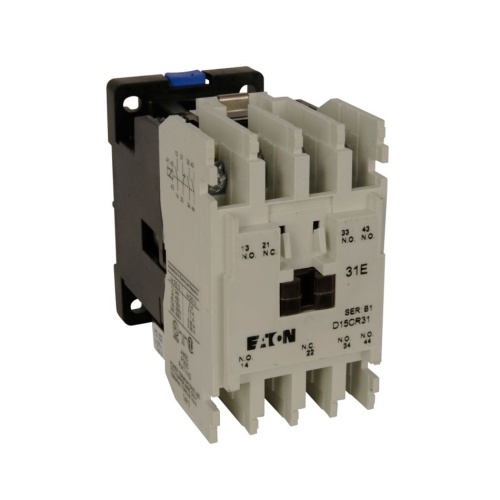

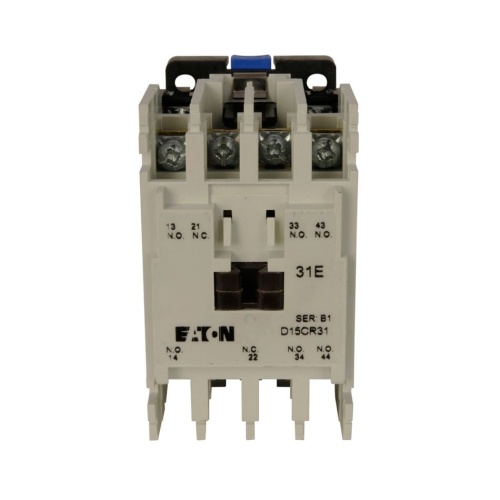

Eaton D15CR31DB76 Machine Tool Relay - 4PST-3 NO/1 NC, 600 Volt Coil, 10 Amp
Normally In Stock
Code: 264496
Eaton D15CR31DB76 Machine Tool Relay - Four Pole - Single Throw 3 Normally Open & 1 Normally Closed - 600 Volt Coil, 10 Amp
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$315.68
Sale Price
$263.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton D15CR31DB76 - D15 Series Freedom 600V Multi-pole Relay, Four-pole, 550/600V coil voltage, 50/60 Hz, 3 Normally Open-1 Normally Closed contact configuration, 12A make, 1.2A break contact rating, 10A rated operational current
Specifications
Relay Poles
Four Pole
Relay Throws
Single Throw 3 Normally Open & 1 Normally Closed
Relay Load Amperage
10 Amp
Coil Voltage Rating
600 Volt
Manufacturer
Eaton
Relay UL Rating
UL Listed
Relay UL Rating
CSA Certified
Component
Machine Tool Relay
Features
Contact pole terminals have captive, backed-out, self-lifting pressure plates for reduced wiring time
Terminals are shrouded or “finger-proofed” to reduce possibility of electrical shock
Wide spacing of contacts simplifies installation, contact testing and maintenance
Contacts are electrically and mechanically isolated from each other for added safety
Surge suppressors mount in contact cavity, limiting high transient voltages resulting from de-energizing relay coil, for protection of sensitive instruments and solid-state devices
