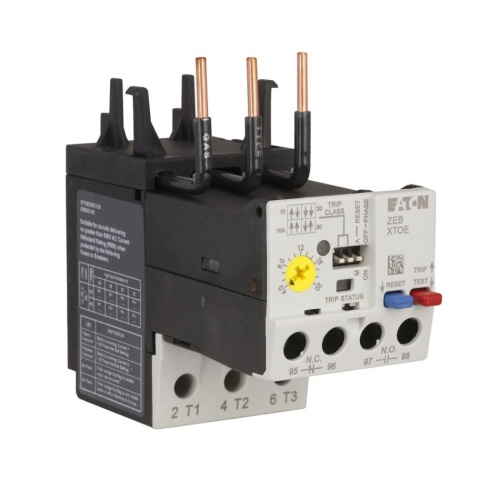

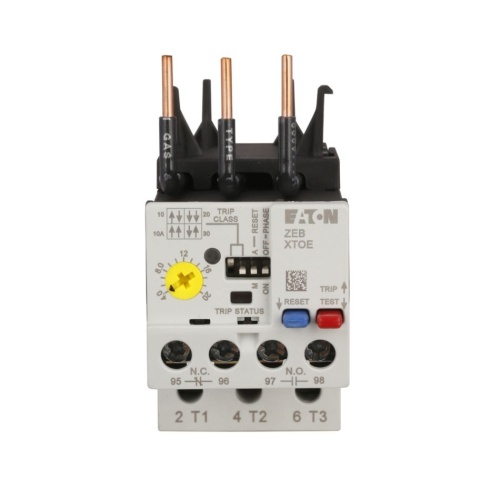

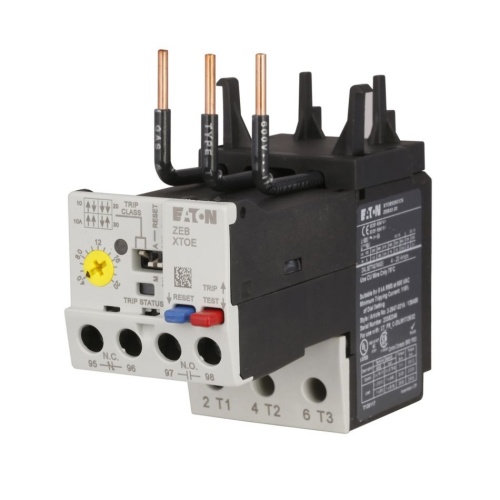

Eaton XTOE045CGS Electronic Overload Relay - 1 NO/1 NC
Normally In Stock
Code: 263992
Eaton XTOE045CGS Electronic Overload Relay Single Throw 1 Normally Open & 1 Normally Closed Direct Mount
Condition: New
Usually ships Same Day or Next Day$277.56
Sale Price
$231.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton XTOE045CGS - C440 , XT IEC , 9-45A overload range, 45 mm Frame size, Normally Open- Normally Closed contact configuration, Direct to contactor mounting, Ground fault w/ selectable class 10, 20 trip type
Specifications
Relay Throws
Single Throw 1 Normally Open & 1 Normally Closed
Manufacturer
Eaton
Relay UL Rating
UL Listed
Relay UL Rating
CSA Certified
Relay UL Rating
IEC 60947
Relay UL Rating
EN 60947
Relay Mounting
Direct
Component
Electronic Overload Relay
Features
Electronics accurately identify excessive current or phase loss and react to conditions with greater speed, reliability and repeatability than traditional electromechanical devices
Integral ground fault protection supporting true simultaneous ground fault protection and communications – translates to reduced inventory, quicker installation time and a reduced physical footprint
Flexible communication with optional I/O enables easy integration into plant management systems for remote monitoring and control
Remote monitoring capabilities to discover changes in your system protects against unnecessary downtime
LED indicator provides predictive indication that allows users to determine the status of the overload as well as an impending trip to provide enhanced protection of your most important assets
Wide FLA adjustment (5:1) and selectable trip class improves return on investment by reducing inventory carrying costs
Patented thermal modeling design results in increased motor life
Voltage loss restart provides automatic revival after outages
