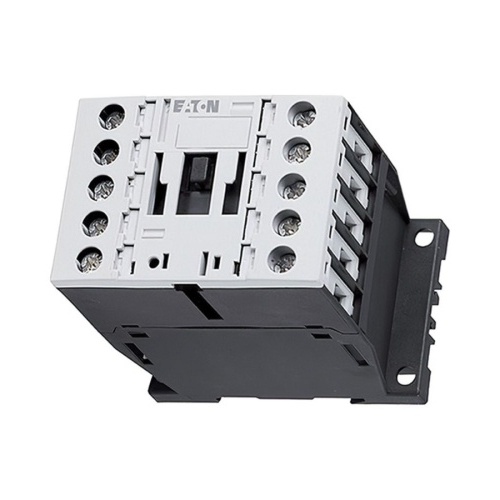

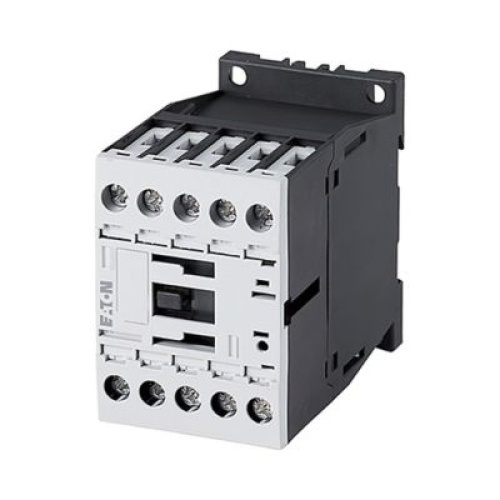

Eaton XTRM10A31L Control Relay - 3 NO/1 NC, 440 Volt Coil, 10 Amp
Normally In Stock
Code: 263952
Eaton XTRM10A31L Control Relay Single Throw 3 Normally Open & 1 Normally Closed - 440 Volt Coil, 10 Amp
Condition: New
Usually ships Same Day or Next Day$74.47
Sale Price
$62.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton XTRM10A31L - XT IEC Miniature Control Relay, Screw terminals, 45 mm - mini Frame size, 3 Normally Open-1 Normally Closed contact configuration, 380V 50 Hz, 440V 60 Hz coil, 10A conventional thermal rating, 6A at 220/230/240V; 3A at 380/400/415V rated operational voltage
Specifications
Component
Control Relay
Relay Throws
Single Throw 3 Normally Open & 1 Normally Closed
Relay Load Amperage
10 Amp
Coil Voltage Rating
440 Volt
Manufacturer
Eaton
Relay UL Rating
UL Listed
Features
XTMR versions: 4NO contacts
3NO contacts and 1NC contact
and 2NO contacts and 2NC contacts
Can be expanded to up to eight contacts
All contacts are interlocked and opposing
