Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 260153

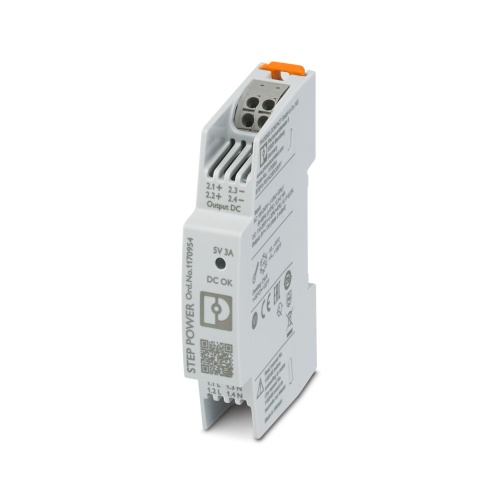

Phoenix Contact 1170954 Power supply STEP3-PS/1AC/5DC/3/PT
Normally In Stock
STEP3-PS/1AC/5DC/3/PT Phoenix 1170954 Power supplies for building automation Input: 113 VDC - 250 VDC,Output: 5 VDC, 0.17 Amp Push-In Connections, Mount Type: Din Rail Mount
Condition: New
Usually ships Same Day or Next Day$46.08
Sale Price
$38.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1170954 A primary-switched power supply unit is available in two forms, STEP POWER, which can be easily installed by simply pushing it into place, and can also be mounted on a DIN rail or directly to the product for a more secure connection. This power supply has an input that accepts a single-phase current source and produces a stable output of 5V DC at a maximum current capacity of 3A.
Specifications
Power Supply Type
Switching
Power Supply Voltage Output
5 VDC
Power Supply Mounting
Din Rail Mount
Power Supply Amperage Output
3 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
STEP
Power Supply Voltage Input
240VAC
Power Supply Voltage Input
120VAC
Power Supply Voltage Input Range
110 VDC - 250 VDC
Power Supply Amperage Output Range
0-5 Amp
Features
Energy savings with the highest level of efficiency in no-load and part-load operation (Efficiency Level VI)
Space savings in the control cabinet due to the narrow design combined with increased performance (up to 100%)
Approval for household purposes (EN 60335) allows use in domestic applications
Quick and easy startup with tool-free Push-in connection technology at a 45° angle with double terminal points

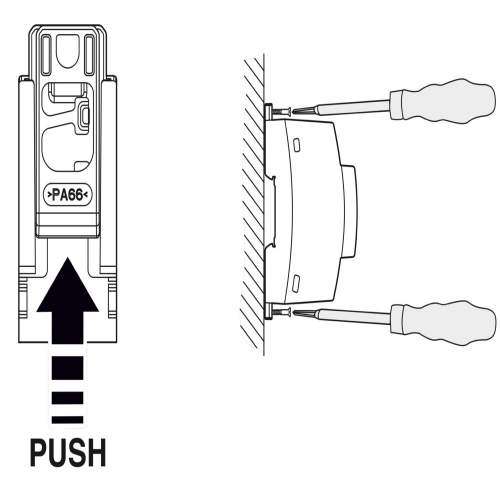

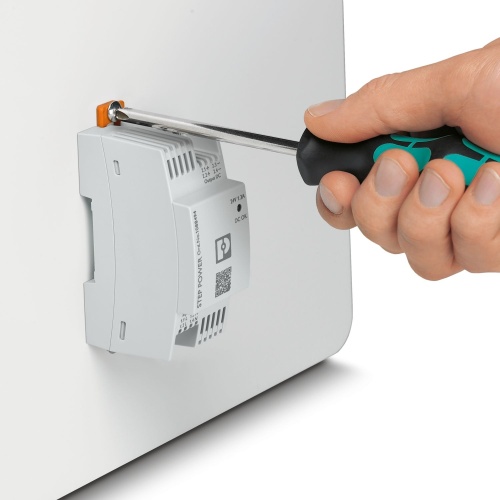

Flexible mounting: Snap onto a DIN rail or screw onto a level surface
