Code: 260152
Phoenix Contact 1088486 Power supply STEP3-PS/1AC/24DC/3.75/PT/FL
Normally In Stock
STEP3-PS/1AC/24DC/3.75/PT/FL Phoenix 1088486 Power supplies for building automation Input: 112 VDC - 250 VDC,Output: 24 VDC, 0.88 Amp Push-In Connections, Mount Type: Din Rail Mount
Condition: New
Usually ships Same Day or Next Day$86.62
Sale Price
$72.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

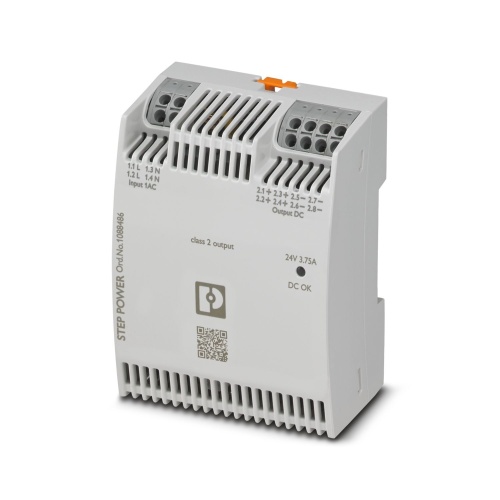

Phoenix Contact 1088486 The STEP POWER is a primary-switched power supply unit that can be easily installed using a push-in connection, and it's available in two installation options - either mounted directly on the DIN rail or securely attached via direct mounting. It features a single-phase input configuration, which supplies a stable 24V DC output at a maximum current rating of 3.75A.
Specifications
Power Supply Type
Switching
Power Supply Voltage Input
120 VAC
Power Supply Voltage Input
240 VAC
Power Supply Mounting
Din Rail Mount
Power Supply Voltage Output
24 VDC
Component
Power Supply
Power Supply Amperage Output
3.75 Amp
Manufacturer
Phoenix Contact
Line
STEP
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
112-250 VDC
Features
Energy savings with the highest level of efficiency in no-load and part-load operation (Efficiency Level VI)
Space savings in the control cabinet due to the narrow design combined with increased performance (up to 100%)
Approval for household purposes (EN 60335) allows use in domestic applications
Quick and easy startup with tool-free Push-in connection technology at a 45° angle with double terminal points

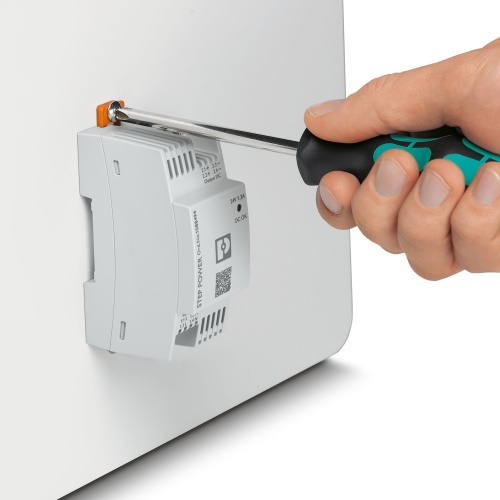

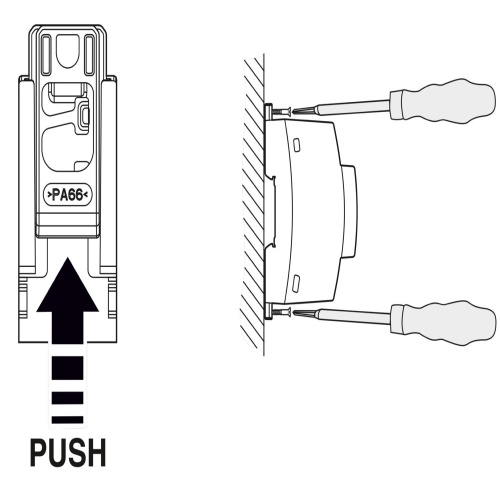

Flexible mounting: Snap onto a DIN rail or screw onto a level surface
