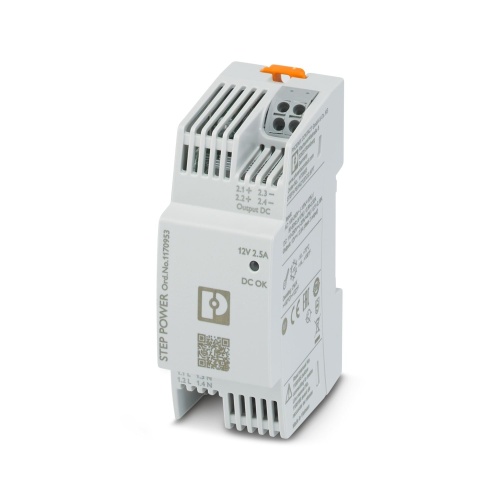

Phoenix Contact 1170953 Power supply STEP3-PS/1AC/12DC/2.5/PT
Normally In Stock
Code: 260151
STEP3-PS/1AC/12DC/2.5/PT Phoenix 1170953 Power supplies for building automation Input: 111 VDC - 250 VDC,Output: 12 VDC, 0.31 Amp Push-In Connections, Mount Type: Din Rail Mount
Condition: New
Usually ships Same Day or Next Day$51.11
Sale Price
$42.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1170953 The STEP POWER power supply unit features a primary-switched design and is easily installed via a push-in connection that can be mounted on either a DIN rail or directly to the unit itself, accepting a single-phase input and producing a stable 12V DC output with a maximum current capacity of 2.5A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Voltage Output
12 VDC
Power Supply Amperage Output
2.5 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
STEP
Power Supply Voltage Input
240VAC
Power Supply Voltage Input
120VAC
Power Supply Voltage Input Range
110 VDC - 250 VDC
Power Supply Amperage Output Range
0-5 Amp
Features
Energy savings with the highest level of efficiency in no-load and part-load operation (Efficiency Level VI)
Space savings in the control cabinet due to the narrow design combined with increased performance (up to 100%)
Approval for household purposes (EN 60335) allows use in domestic applications
Quick and easy startup with tool-free Push-in connection technology at a 45° angle with double terminal points

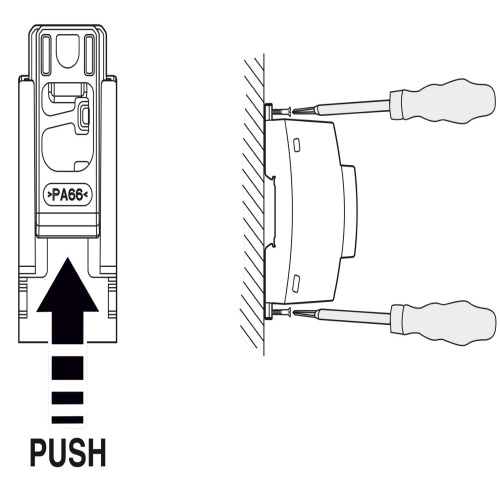

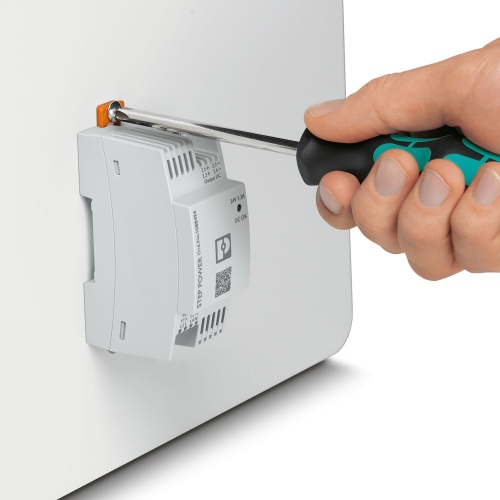

Flexible mounting: Snap onto a DIN rail or screw onto a level surface
