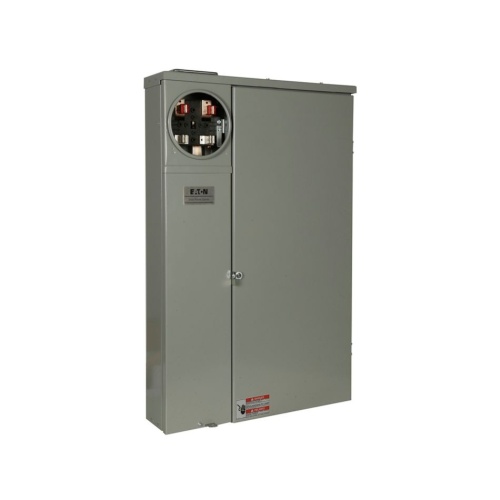

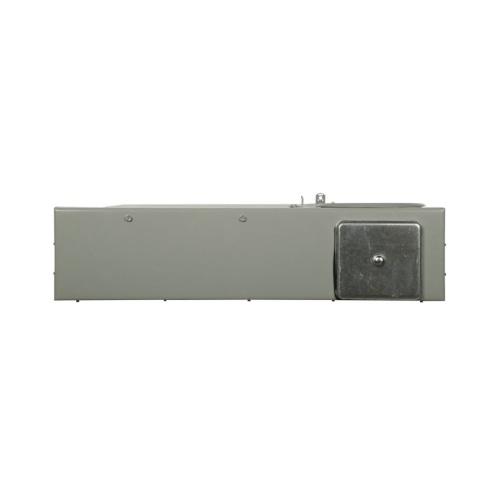

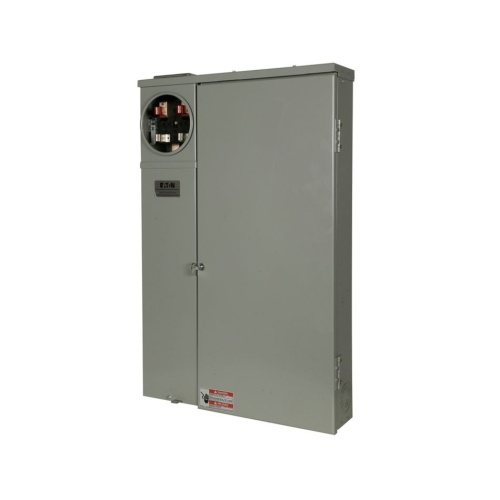

Eaton CMBE4242PV200BS Solar Power Center Meter Breaker - 240 Max Volt 200 Amp
Normally In Stock
Code: 254634
Eaton CMBE4242PV200BS Solar Power Center Meter Breaker - 120 Max Volt, 240 Max Volt - 200 Amp
Condition: New
Usually ships Same Day or Next Day$5800.50
Sale Price
$4833.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton CMBE4242PV200BS Solar Power Center Meter Breaker - Type CH - 200A - Galvanized steel Enclosure - solar-ready - Copper Bus 225 Ampere - Underground - 22 kAIC - Surface mounting - Single-phase - 120/240V
Specifications
Amperage (Molded Case Breaker)
200 Amp
Maximum Voltage (Molded Case Breaker)
240 VAC
Maximum Voltage (Molded Case Breaker)
120 VAC
Interrupt Rating (Molded Case Breaker)
10 Ka
Manufacturer
Eaton
Component
Solar Power Center Meter Breaker
Features
Complies with NEC (2008) Section 690.64 (B) / (2011) Section 705.12 (D), which identifies the acceptable installation and marking requirements for utility interactive solar inverters
Up to 225 A rated copper bussing maximizes solar source up to 70 A for standard units
100 A, 125 A and 200 A main breakers are available factory installed, providing additional flexibility in PV sizing
Main breaker is located at the end of the distribution panel, ensuring compliance with NEC requirements
Single-phase, three-wire 120/240 Vac
Overhead and underground feed applications
Padlocking provisions
Surface- and flush-mounted designs available
Top or bottom exit of load wiring
Limited lifetime warranty for CH and 10-year warranty for BR
