Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

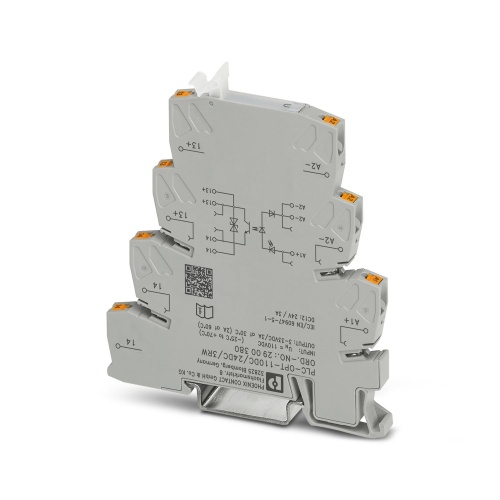

Phoenix Contact 2900380 Solid-state relay module PLC-OPT-110DC/ 24DC/3RW
Normally In Stock
Code: 24565
Phoenix Contact 2900380 Miniature Solid State Relay PLC-OPT-110DC/ 24DC/3RW online from authorized Phoenix Contact Replay distributor RSP Supply. Check stock and pricing, view product specifications, and order online.
Condition: New
Usually ships Same Day or Next Day $67.86
Sale Price
$56.55
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2900380 A PLC-Interface for railway applications comprises a basic terminal block with push-in connections and an integrated miniature solid-state relay. The device measures 0.7 x UN to 1.25 x UN in size and operates within a temperature range of -25°C to +70°C. It features one N/O contact, accepts input power from 110 V DC, and produces output voltages between 3-33 V DC, capable of handling up to 3 A current.
Specifications
Relay Mounting
Din Rail
Relay Indication
LED Indicator
Relay Connection Type
Push-In Connection
Component
Relay Module-Solid State
Manufacturer
Phoenix Contact
Relay Input Amperage
3 Mamp
Relay Load Voltage DC Rating
24 Volt
Relay Application
Railway Input Function Output Function
Coil Voltage Rating
110-127 Volt
Features
Shock resistance in accordance with DIN 50155 (requirements in accordance with EN 61373)
Temperature range: -25 °C ... +70 °C
Input voltage range of 0.7 - 1.25 x UN
Downloads
Phoenix 2900380 Application Note English.pdfPhoenix 2900380 CAD data International.dxfPhoenix 2900380 CAD data International.pdfPhoenix 2900380 CAD data International.stpPhoenix 2900380 CAD Drawing.zipPhoenix 2900380 Circuit Diagram.jpgPhoenix 2900380 Manufacturers declaration English.pdfPhoenix 2900380 Manufacturers declaration International.pdfPhoenix 2900380 Package Slip International.pdfPhoenix 2900380 Package Slip.pdfPhoenix 2900380 Product Information English.pdfPhoenix 2900380 Spec Sheet.pdfPhoenix 2900380 Tender Text English.zip
