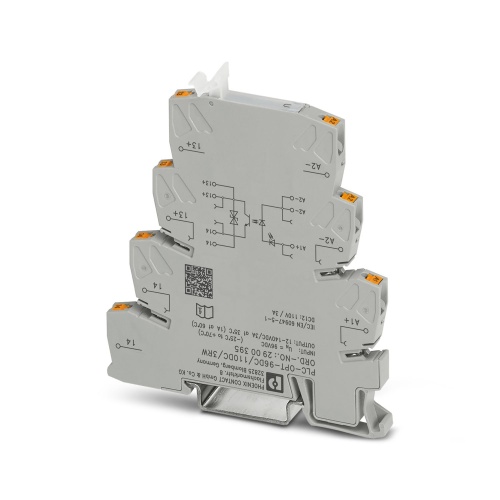

Phoenix Contact 2900395 Solid-state relay module PLC-OPT- 96DC/110DC/3RW
Normally In Stock
Code: 24563
Phoenix Contact 2900395 Miniature Solid State Relay PLC-OPT- 96DC/110DC/3RW online from authorized Phoenix Contact Replay distributor RSP Supply. Check stock and pricing, view product specifications, and order online.
Condition: New
Usually ships Same Day or Next Day $83.47
Sale Price
$69.56
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2900395 A railway-specific PLC-Interface features a compact terminal block with push-in connections and a built-in miniature solid-state relay. The device's size accommodates a range of 0.7 to 1.25 units long, while its operating temperature spans from -25°C to +70°C. It includes one N/O contact as the primary output feature, supporting both DC power input at 96V and output voltage ranging from 12-140V, with an accompanying current capacity of up to 3A.
Specifications
Relay Mounting
Din Rail
Relay Indication
LED Indicator
Relay Connection Type
Push-In Connection
Component
Relay Module-Solid State
Manufacturer
Phoenix Contact
Relay Input Amperage
5 Mamp
Relay Application
Railway Input Function Output Function
Relay Load Voltage DC Rating
110 Volt
Coil Voltage Rating
96 Volt
Features
Shock resistance in accordance with DIN 50155 (requirements in accordance with EN 61373)
Temperature range: -25 °C ... +70 °C
Input voltage range of 0.7 - 1.25 x UN
Downloads
Phoenix 2900395 Application Note English.pdfPhoenix 2900395 CAD data International.dxfPhoenix 2900395 CAD data International.pdfPhoenix 2900395 CAD data International.stpPhoenix 2900395 CAD Drawing.zipPhoenix 2900395 Circuit Diagram.jpgPhoenix 2900395 Manufacturers declaration English.pdfPhoenix 2900395 Manufacturers declaration International.pdfPhoenix 2900395 Package Slip International.pdfPhoenix 2900395 Package Slip.pdfPhoenix 2900395 Product Information English.pdfPhoenix 2900395 Spec Sheet.pdfPhoenix 2900395 Tender Text English.zip
