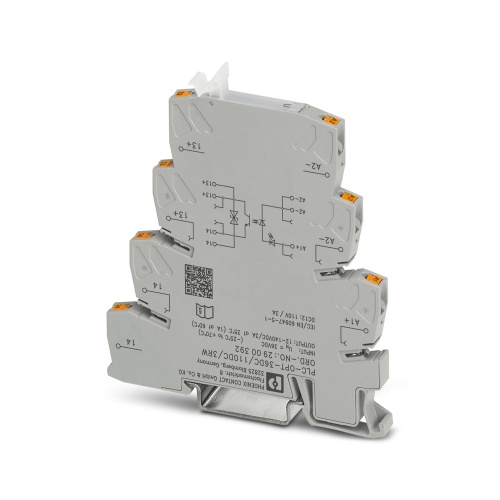

Phoenix Contact 2900392 Solid-state relay module PLC-OPT- 36DC/110DC/3RW
Normally In Stock
Code: 24543
Phoenix Contact 2900392 Miniature Solid State Relay PLC-OPT- 36DC/110DC/3RW online from authorized Phoenix Contact Replay distributor RSP Supply. Check stock and pricing, view product specifications, and order online.
Condition: New
Usually ships Same Day or Next Day $59.99
Sale Price
$49.99
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2900392 A PLC interface for railway applications is a compact terminal block featuring a push-in connection and integrated solid-state relay, available in sizes ranging from 0.7 x UN to 1.25 x UN. The device can withstand temperatures between -25°C and +70°C, and comes equipped with one N/O contact. It has an input voltage of 36 V DC and an output range of 12-140 V DC at a maximum current of 3 A.
Specifications
Relay Mounting
Din Rail
Relay Indication
LED Indicator
Relay Connection Type
Push-In Connection
Component
Relay Module-Solid State
Manufacturer
Phoenix Contact
Relay Input Amperage
12 mAmp
Coil Voltage Rating
36 Volt
Relay Load Voltage DC Rating
110 Volt
Features
Shock resistance in accordance with DIN 50155 (requirements in accordance with EN 61373)

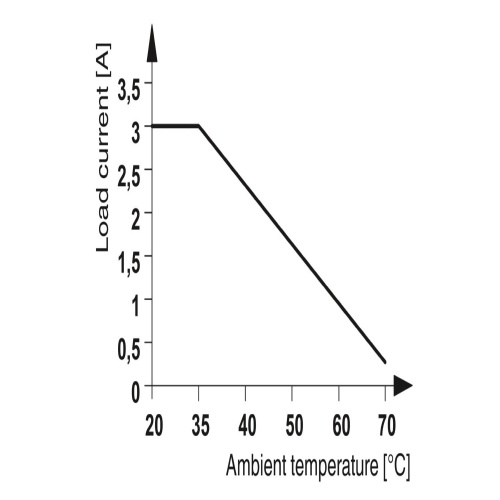

Temperature range: -25 °C ... +70 °C
Input voltage range of 0.7 - 1.25 x UN
Downloads
Phoenix 2900392 Tender Text English.zipPhoenix 2900392 Spec Sheet.pdfPhoenix 2900392 Product Information English.pdfPhoenix 2900392 Package Slip.pdfPhoenix 2900392 Package Slip International.pdfPhoenix 2900392 Manufacturers declaration International.pdfPhoenix 2900392 Manufacturers declaration English.pdfPhoenix 2900392 Circuit Diagram.jpgPhoenix 2900392 CAD Drawing.zipPhoenix 2900392 CAD data International.stpPhoenix 2900392 CAD data International.pdfPhoenix 2900392 CAD data International.dxfPhoenix 2900392 Application Note English.pdf
