Code: 24503

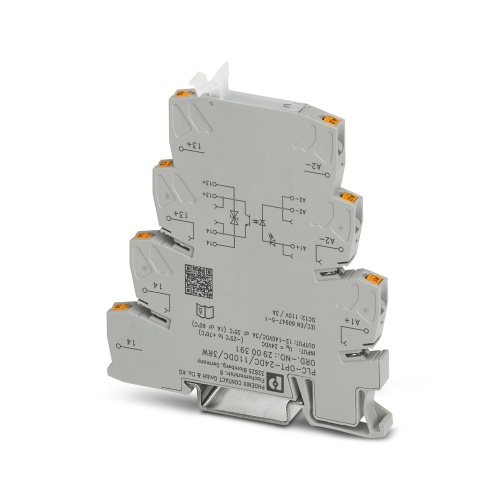

Phoenix Contact 2900391 Solid-state relay module PLC-OPT- 24DC/110DC/3RW
Normally In Stock
Phoenix Contact 2900391 Miniature Solid State Relay PLC-OPT- 24DC/110DC/3RW online from authorized Phoenix Contact Replay distributor RSP Supply. Check stock and pricing, view product specifications, and order online.
Condition: New
Usually ships Same Day or Next Day $83.47
Sale Price
$69.56
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2900391 A PLC-Interface for railway applications is available, comprising a basic terminal block with push-in connection and an integrated miniature solid-state relay. The device comes in various sizes ranging from 0.7x to 1.25x UN, and can withstand temperatures between -25°C and +70°C. It features one N/O contact, accepts a 24 V DC input, and provides a output voltage of 12-140 V DC at 3 A.
Specifications
Relay Mounting
Din Rail
Relay Indication
LED Indicator
Relay Connection Type
Push-In Connection
Component
Relay Module-Solid State
Manufacturer
Phoenix Contact
Relay Input Amperage
12 mAmp
Coil Voltage Rating
12-24 Volt
Relay Load Voltage DC Rating
110 Volt
Features
Shock resistance in accordance with DIN 50155 (requirements in accordance with EN 61373)
Input voltage range of 0.7 - 1.25 x UN
Temperature range: -25 °C ... +70 °C
Downloads
Phoenix 2900391 Application Note English.pdfPhoenix 2900391 CAD data International.dxfPhoenix 2900391 CAD data International.pdfPhoenix 2900391 CAD data International.stpPhoenix 2900391 CAD Drawing.zipPhoenix 2900391 Circuit Diagram.jpgPhoenix 2900391 Manufacturers declaration English.pdfPhoenix 2900391 Manufacturers declaration International.pdfPhoenix 2900391 Package Slip International.pdfPhoenix 2900391 Package Slip.pdfPhoenix 2900391 Product Information English.pdfPhoenix 2900391 Spec Sheet.pdfPhoenix 2900391 Tender Text English.zip
