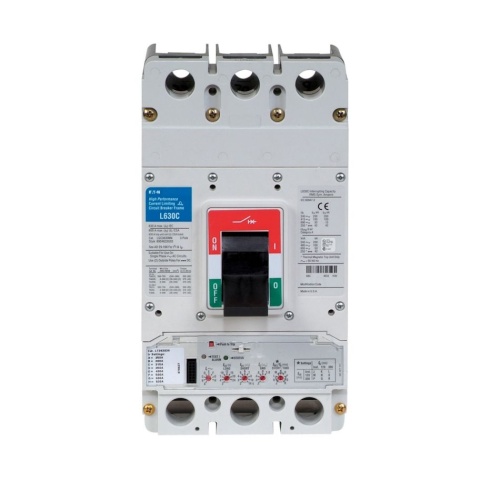

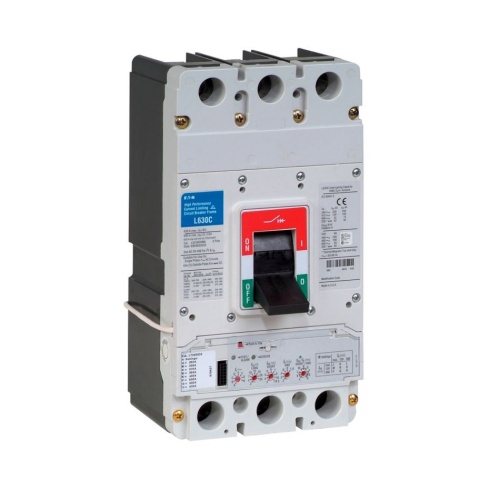

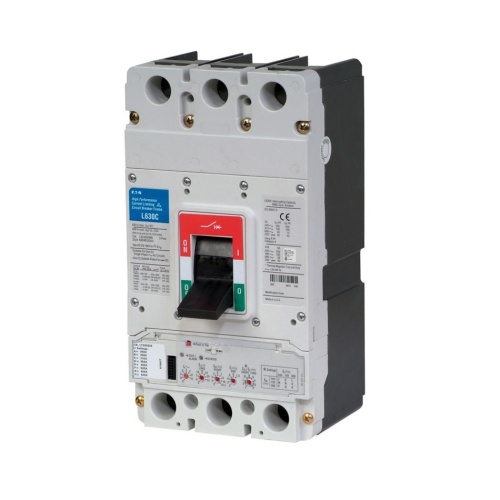

Eaton LGX360038B20G Electronic Molded Case Circuit Breaker - 600 Max Volt 600 Amp
Normally In Stock
Code: 244543
Eaton LGX360038B20G Electronic Molded Case Circuit Breaker - 600 Max Volt - 600 Amp - Three Pole
Condition: New
Usually ships Same Day or Next Day$18097.14
Sale Price
$15080.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton LGX360038B20G LG-frame- LG- Complete breaker- Digitrip 310 RMS- Elect ALSI trip- Three-pole- 600A- 200 kAIC at 240 Vac- 200 kAIC at 415 Vac- 200 kAIC at 480 Vac- 65 kAIC at 600 Vac- Hi-load Alarm w/trip
Specifications
Poles (Molded Case Breaker)
Three Pole
Amperage (Molded Case Breaker)
600 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
Manufacturer
Eaton
Component
Electronic Molded Case Circuit Breaker
Frame Type (Molded Case Breaker)
LG Frame
Features
Compact design frees up panel space.
Common field-fit internal accessories make installation and custom configuration easy.
Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility.
Patented contact design features high-speed “blow-open” action, resulting in superior performance.
Mounting hardware and lugs are included, on LG frame and below, for convenience, eliminating the need for separate parts orders.
Meets the requirements of UL, CSA, IEC, CCC and CE, providing a truly global design and worldwide acceptance.
A premier selection of trip units including thermal magnetic, electronic, and magnetic only switches is available.
Extensive UL508 SCCR listings avaliable with Eaton motor control components.
