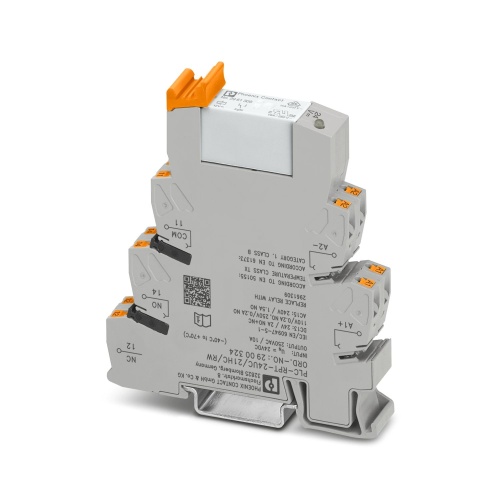

Phoenix Contact 2900324 Relay module PLC-RPT- 24UC/21HC/RW
Normally In Stock
Code: 24406
Phoenix Contact 2900324 Electromagnetic Relay 24 VDC Coil 1 Pole Double Throw
Condition: New
Usually ships Same Day or Next Day $113.44
Sale Price
$94.53
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2900324 A PLC-Interface for railway applications is designed to handle high continuous currents and is comprised of a basic terminal block with push-in connections and plug-in miniature relays. The interface comes in various sizes ranging from 0.7 x UN to 1.25 x UN, is rated for the temperature class TX, allowing operation between -40°C and +70°C, and features only one changeover contact. It also accepts input voltage of 24 V DC.
Specifications
Relay Throws
Double Throw
Relay Mounting
Din Rail
Relay Indication
LED Indicator
Relay Connection Type
Push-In Connection
Relay Poles
Single Pole
Component
Relay Module-Electromagnetic
Manufacturer
Phoenix Contact
Relay Input Amperage
20 Mamp
Coil Voltage Rating
12-24 Volt
Relay Load Voltage AC Rating
250 Volt
Relay Load Voltage DC Rating
250 Volt
Features
Optimum relay operation thanks to wide-range electronics
Certified in accordance with EN 50155
Vibration and shock resistance in accordance with EN 50155
Safe isolation between coil and contact side
Temperature range: -40 °C ... + 70 °C (short-term 85 °C)
Input voltage range of 0.7 to 1.25 x UN (1.4 x UN briefly)
Downloads
Phoenix 2900324 Application Note English.pdfPhoenix 2900324 CAD data International.dxfPhoenix 2900324 CAD data International.pdfPhoenix 2900324 CAD data International.stpPhoenix 2900324 CAD Drawing.zipPhoenix 2900324 Circuit Diagram.jpgPhoenix 2900324 Manufacturers declaration English.pdfPhoenix 2900324 Manufacturers declaration International.pdfPhoenix 2900324 Product Information English.pdfPhoenix 2900324 Spec Sheet.pdfPhoenix 2900324 Tender Text English.zipPhoenix 2900324 Various International-2.pdfPhoenix 2900324 Various International.pdf
