Code: 24334

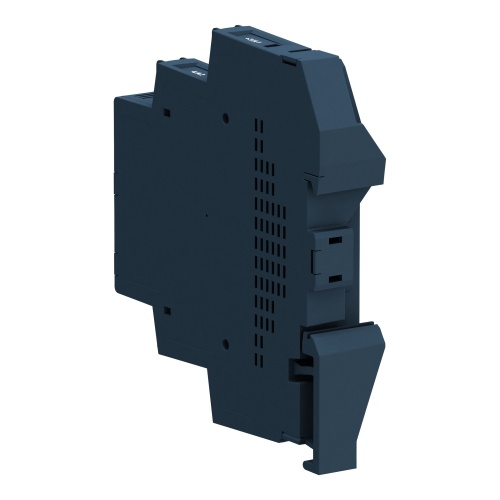

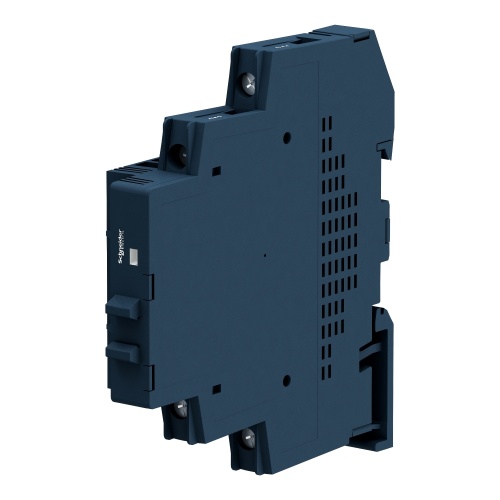

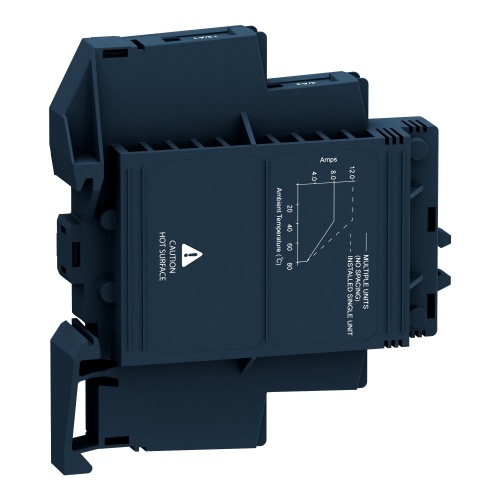

Schneider SSM2A16BDR Dual Channel Solid State SSM Relay
Normally In Stock
Schneider SSM2A16BDR Square D Solid State SSM Relay (Random Switching) with 4-32 VDC Input Coil Voltage and 24-280 VAC Output Load Voltage Single Phase. 6 Amp Load Amperage, Double Pole Single Throw with1 Normally Open Contact. Din rail mounted with screw connections.
Condition: New
Usually ships Same Day or Next Day$65.56
Sale Price
$54.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Square D SSM2A16BDR Solid State SSM Din rail mount Relay 4-32 VDC Input Coil Voltage and 24-280 VAC Output Load Voltage with 6 Amp Load Amperage, DPST Normally Open. With no exposed metal surfaces and integrated heat sync.
Specifications
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Relay Switching
Zero Voltage Switching
Relay Poles
Double Pole
Component
Relay Module-Solid State
Manufacturer
Schneider Electric
Relay Throws
Single Throw Normally Open
Relay Load Voltage AC Rating
280 Volt
Relay Load Amperage
6 Amp @ 280 Volt
Coil Voltage Max
32 Volt
Relay Load Voltage AC Phase
Single Phase
Coil Voltage Rating
4-6 Volt
Features
Innovative and compact solution for industrial applications
Fast and precision control, high switching frequency
Reliable and silent switching
Robust in harsh environments
Resistance to shock and vibration
