Eaton JGS325033WZ2A1U2 Electronic Molded Case Circuit Breaker - 600 Max Volt 250 Amp
Normally In Stock
Code: 241271

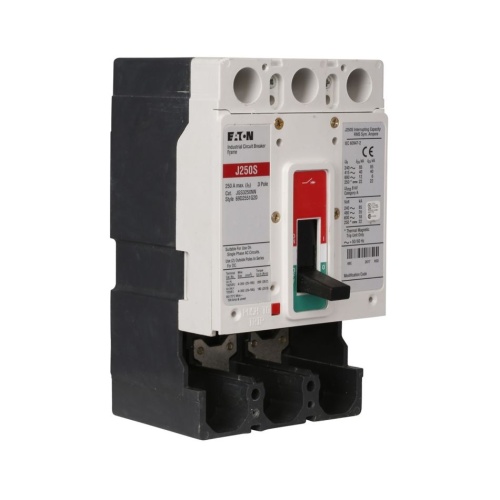

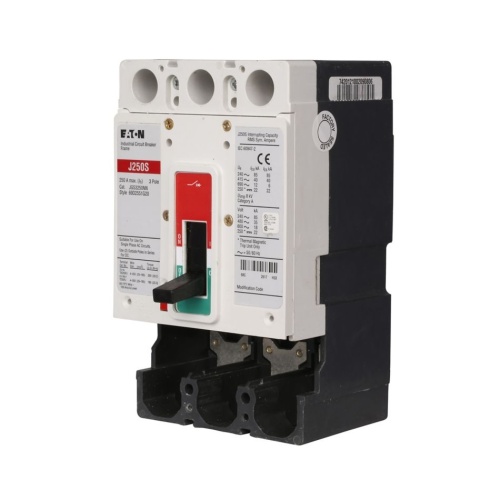

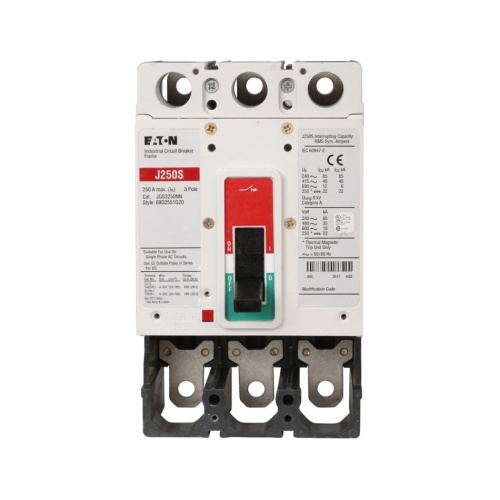

Eaton JGS325033WZ2A1U2 Electronic Molded Case Circuit Breaker - 600 Max Volt - 250 Amp - Three Pole
Condition: New
Usually ships Same Day or Next Day$3156.38
Sale Price
$2630.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton JGS325033WZ2A1U2 JG-frame- JG- Complete breaker- Electronic LS trip- Three-pole- 250A- 600 Volt- no terminals- optional line and load- 1A-1B rear w/ 48 in right pigtail- 24 Vdc rear w/ left pigtail
Specifications
Poles (Molded Case Breaker)
Three Pole
Amperage (Molded Case Breaker)
250 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
Interrupt Rating (Molded Case Breaker)
35 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
18 Ka 600 Volt
Manufacturer
Eaton
Component
Electronic Molded Case Circuit Breaker
Frame Type (Molded Case Breaker)
JG Frame
Interrupt Rating (Molded Case Breaker)
85 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
40 Ka 415 Volt
Features
Compact design frees up panel space.
Common field-fit internal accessories make installation and custom configuration easy.
Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility.
Patented contact design features high-speed “blow-open” action, resulting in superior performance.
Mounting hardware and lugs are included, on LG frame and below, for convenience, eliminating the need for separate parts orders.
Meets the requirements of UL, CSA, IEC, CCC and CE, providing a truly global design and worldwide acceptance.
A premier selection of trip units including thermal magnetic, electronic, and magnetic only switches is available.
Extensive UL508 SCCR listings avaliable with Eaton motor control components.
