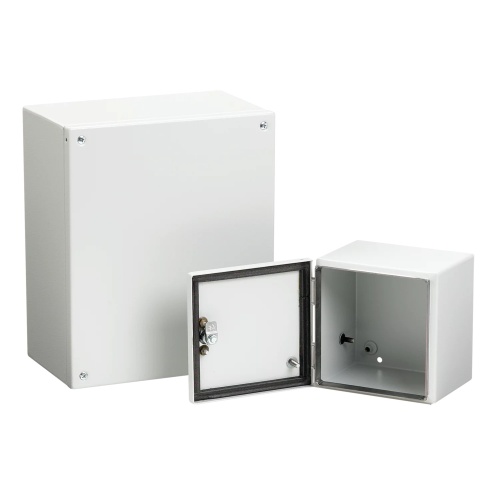

nVent Hoffman LHC302515EMC INLINE EMC Steel Enclosure
Normally In Stock
Code: 2402
nVent Hoffman LHC302515EMC 12" x 10" x 6" Type 1 Indoor Wall Mount Mild Steel EMC Enclosure with hinged cover and quarter turn latches. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$905.62
Sale Price
$754.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman LHC302515EMC INLINE EMC Steel Enclosure INLINE Steel EMC Enclosure with aesthetic styling, with an attractive, durable light-gray finish, where style and functionality are important. Outward formed flange to prevent contaminants from entering the enclosure. Hinged door with quarter turn latches, large perimeter body opening, stay in place door gasket, grounding stud on body, bonding provision on door. Includes hardware kit screws for panel mounts, grounding hardware, sealing washers for hole openings. Studs for adding backplate for mounting equipment.
Specifications
Enclosure Depth
6"
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
Gray
Enclosure Composition
Painted Steel
Enclosure Height
12"
Enclosure Width
10"
Line
Inline
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 1
Manufacturer
Hoffman
Features
Bonding provision on cover and body
Large perimeter body opening
Mounting holes in back of body for direct mounting or optional external mounting brackets
Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
External formed body flange channels away liquids
Seams continuously welded and ground smooth
Plated interior surfaces for gasket contact areas and conduit entries
INLINE EMC Screw-Cover Enclosures:
Shielding effectiveness greater than 50 dB at 1 GHz
Installation instructions
Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
Shielding effectiveness tested in accordance with: IEEE 299, VG 95-373 part 15, MIL-STD-285
Captivated cover screws with sealing bushings
Integral gasket compression stops
Door opens 180 degrees
Removable hinged door
Self-grounding, slotted quarter-turn latch
Finish: Textured RAL 7035 light-gray polyester powder paint inside and out over a plated interior
INLINE EMC Hinged-Door Enclosures:
Downloads
Hoffman LHC302515EMC 2D DXF CAD.zipHoffman LHC302515EMC 3D STEP CAD.zipHoffman LHC302515EMC CAD Drawing.pdfHoffman LHC302515EMC Declaration of Compliance.pdfHoffman LHC302515EMC Dimension Drawing.gifHoffman LHC302515EMC EU Certification.pdfHoffman LHC302515EMC Instruction Manual.pdfHoffman LHC302515EMC Shielding Effectiveness Chart.gifHoffman LHC302515EMC Spec Sheet.pdfHoffman LHC302515EMC UL Certification.pdfHoffman LHC302515EMC User Manual.pdf
