Phoenix Contact 1723764 PCB connector MSTB 2,5 HC/ 5-ST-5,08 BD:+,OK
Normally In Stock
Code: 239822
Phoenix Contact 1723764 PCB Plug, Green, rated voltage: 320 V,Number of positions: 5,Number of connections: 5, *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$8.65
Sale Price
$7.21
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

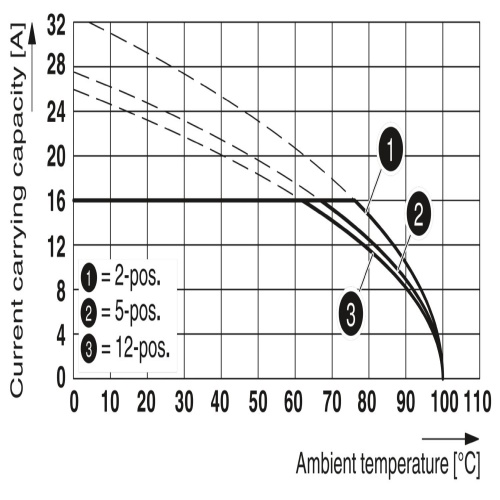

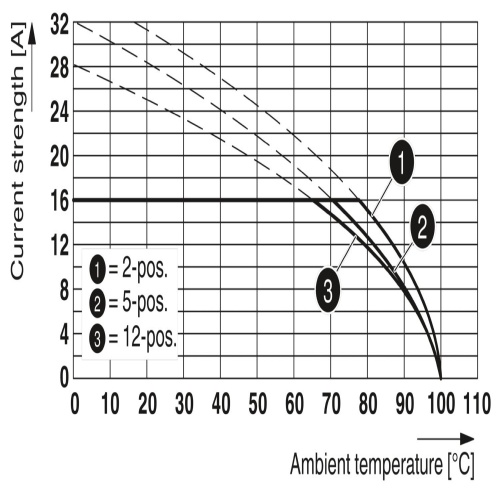

Phoenix Contact 1723764 The PCB connector features a nominal cross-section area of 2.5 mm² and is coloured green, while its rated voltage is 320 V at a nominal current of 16 A as specified on the derating curve, with a contact surface material of Sn. The connector type is socket, comprising five potentials, one row, and five positions, using screw connections with tension sleeves in an L-slotted screw head form, connecting conductors to the PCB at a 0° angle, without locking clips, and available in a comb-in system for the MSTB 2,5 HC product range, packaged in cardboard.
Specifications
Connector Color
Green
Manufacturer
Phoenix Contact
Number of Connections
5
Number of Positions
5
Component
PCB
Sub Component
PCB Plug
Connector Voltage
320 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
