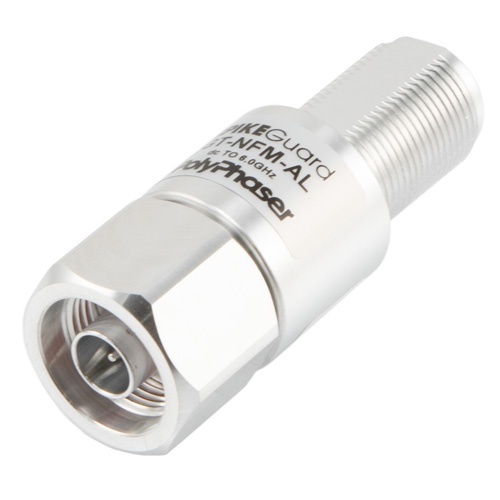

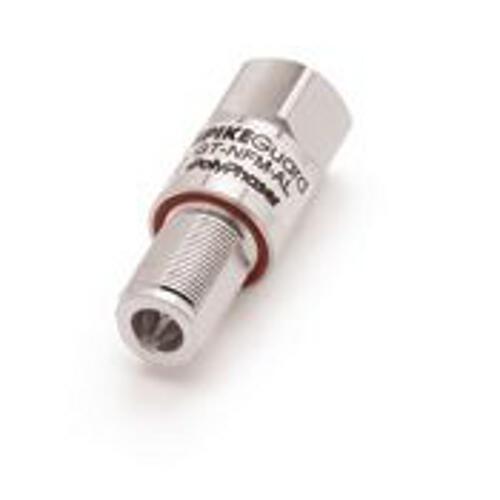

Polyphaser GT-NFM-AL Coax Lightning Protector DC-7 GHz
Normally In Stock
Code: 239
Polyphaser GT-NFM-AL Coax Lightning Protector Gas Tube Coax Protector DC-7000 MHz DC Pass Multi-Transmitters Coax Lightning Protection NF-NM(Bi-directional) Bulkhead Mount.
Condition: New
Usually ships Same Day or Next Day$81.13
Sale Price
$67.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Polyphaser GT-NFM-AL DC Pass Gastube Protector DC-7000 MHz with 90 Watt 80 VDC Pass Voltage. Weatherized Max Surge of 20kA, VSWR ≤1.1:1 to 3 GHz, Insertion Loss ≤ 0.1 dB to 4 GHz.
Specifications
Technology (RF Protection)
Gas Tube (Avg 10 Yr. Life)
Connector Surge Side (RF Protection)
N Female
Weatherization (RF Protection)
Weatherized
Max Surge Rate (RF Protection)
20Ka
DC Handling (RF Protection)
DC Pass
DC Pass Voltage (RF Protection)
80 VDC
Max Watts (RF Protection)
90 Watts
Direction Connection (RF Protection)
Bi-Directional NF-NM
Connector Protected Side (RF Protection)
N Male
Max Insertion Loss (RF Protection)
≤0.1 Db
VSWR (RF Protection)
≤1.1:1
Manufacturer
Polyphaser
Frequency (RF Protection)
DC-7 Ghz
Frequency (RF Protection)
2 Ghz
Frequency (RF Protection)
3 Ghz
Frequency Max (RF Protection)
7 Ghz
Component
Lightning Protector
Features
PolyPhaser coaxial RF surge protector (also known as lightning surge protector, lightning surge arrestor or suppressor) GT-NFM-AL is in-stock and will ship same-day as purchased.
This radio frequency surge protector / lightning surge arrestor helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes.
Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass DC to 6 GHz while suppressing DC surge.While this radio frequency lightning surge suppressor operates in a range of frequencies from DC to 6GHz, it is supporting a power handling maximum of 90 Watts.
RF surge protector GT-NFM-AL from PolyPhaser incorporates gas discharge tube technology to provide protection for equipment at up to the max. power of 90W.

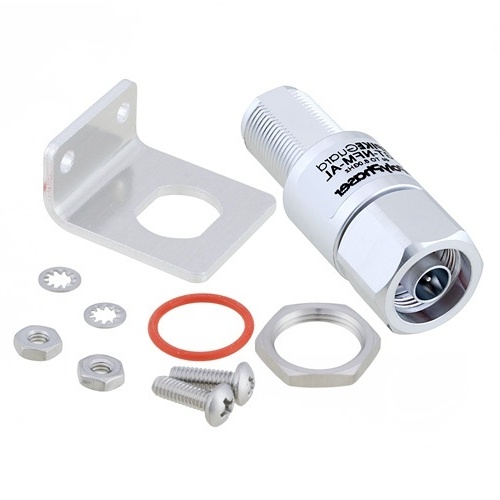

Our coax surge protection device for RF is manufactured with a N type bulkhead connection in and a type N bulkhead out.GT-NFM-AL is constructed with a female gender for the input and male for the output.
This F/M type N to type N surge protecting component for RF has a let-through energy of 5mJ.
The coaxial lightning surge arrestor is IP rated, it has an IP67 rating.
Our N type bulkhead coaxial lightning surge protector is RoHS compliant.PolyPhaser provides one of the largest varieties of RF / microwave surge protector devices available for same-day shipping.
Our facilities ship type N F/M bulkhead coaxial RF surge protector, DC - 6GHz, 90W, IP67, 60 V max., 5mJ, 20kA, gas discharge tube as well as the rest of our surge protection product line from in-stock inventory the same day as purchased.
We support our customers with a sense of urgency while providing innovative lightning and surge protection solutions that ensure reliable operation of critical systems for a connected world.
