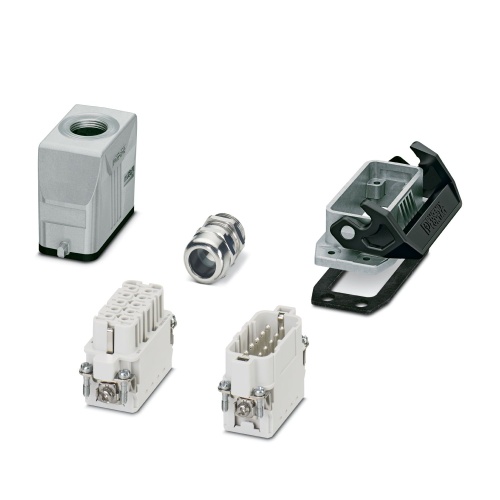

Phoenix Contact 1424455 Connector set HC-STA-A10PT-BWS-LT-M20-ELCAL
Normally In Stock
Code: 238201
Phoenix Contact 1424455 - Connector set - 10 Positions - Copper Alloy - 26 AWG - 16 Amp - 250 V - IP66 - Push-In Connection - Latch Locking
Condition: New
Usually ships Same Day or Next Day$79.92
Sale Price
$66.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1424455 A connector set with 10 individual connections is available, utilizing a push-in connection method, which involves inserting the wires into pre-defined channels to establish secure and reliable electrical connections, typically featuring a circular cross-sectional profile ranging from 26 to 14 gauge (AWG) wire.
Specifications
Connector Amperage
16 Amp
Connector Size
D15
Connector Material
Die-Cast Aluminum
Connector Material
Copper Alloy
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
10
Sub Component
Connector Set
Connector Voltage
250 Volt
Features
The right connection for your requirements every time with three different series
Compatible connection: housings and contact inserts are mounting and plug-in compatible with solutions from well-known manufacturers
Flexible combination: variable connection technologies for contact inserts and terminal adapters
Customized, compact interface: combine modular contact inserts for signals, data, power, and pneumatics in one connector
Protection against electromagnetic interference: metal housings are EMC-ready due to their conductive surfaces and seals
