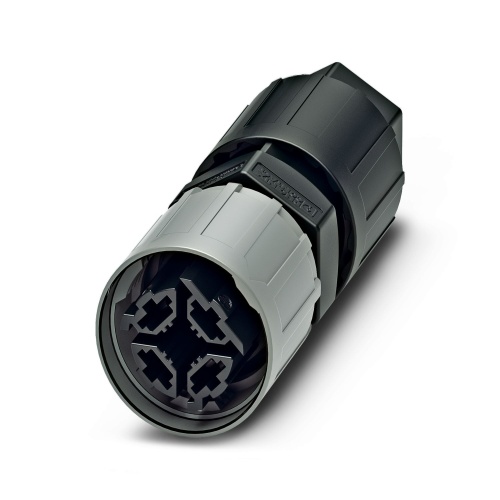

Phoenix Contact 1424043 Connector QPD P4X2,5 6-10 BK
Normally In Stock
Code: 238152
Phoenix Contact 1424043 - Connector - 4 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$14.94
Sale Price
$12.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1424043 The connector is part of the QPD product family and utilizes an IDC connection method, available in various gauges from 1mm² to 2.5mm². It operates at a maximum voltage of 690V and current capacity of 20A, while featuring a black color with a QUICKON nut for secure connections. The external cable diameter spans from 6mm to 10mm and is accompanied by a specified coding profile.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
