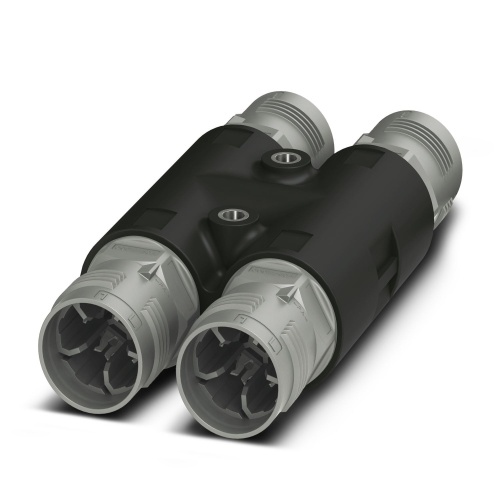

Phoenix Contact 1423997 H distributor QPD H4X2,5 GY
Normally In Stock
Code: 238140
Phoenix Contact 1423997 Power Distributor, Black, rated voltage: 690 V, nom. current: 20 Amp
Condition: New
Usually ships Same Day or Next Day$57.70
Sale Price
$48.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1423997 A QPD (Quick Disconnect) distributor, part of the product family, features an IDC (In-Line Connectors and D-subminiature) connection method with a fast connection system called QUICKON. Available in various wire sizes from 1 mm2 to 2.5 mm2, this distributor is rated for a maximum voltage of 690 V and a maximum current of 20 A, operating in PA (Power Amplifier) mode, characterized by its gray color and absence of the QUICKON nut, with a coding profile that completes the specification.
Specifications
Connector Color
Black
Connector Amperage
20 Amp
Manufacturer
Phoenix Contact
Component
Power Distributor
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Flexible and compact - by connecting connections internally, H and T-distributors can be used to branch master cables or they can be used as star distributors
