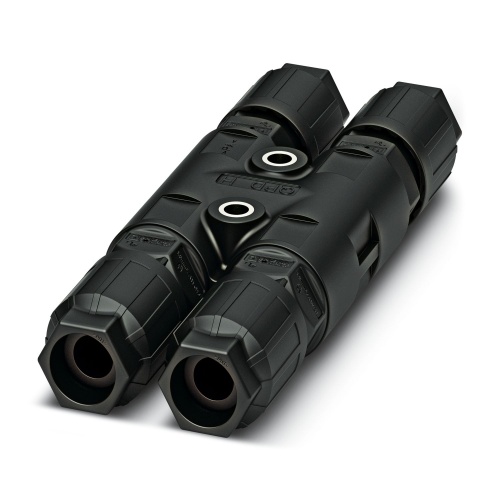

Phoenix Contact 1414720 H distributor QPD H 2PE1,5 4X8-13 BK
Normally In Stock
Code: 237761
Phoenix Contact 1414720 Power Distributor, Black, rated voltage: 690 V, nom. current: 7.5 Amp,Number of positions: 2+P,
Condition: New
Usually ships Same Day or Next Day$84.16
Sale Price
$70.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1414720 A high-distributor is part of the QPD product family and features an IDC connection for connections, accommodating multiple positions ranging from 2 pins to 5 pins, with varying wire gauge sizes between 0.5mm² to 1.5mm². It operates within a 690V voltage range and has an output current capacity of 17.5A, utilizing a PA configuration. The distributor is black in color, consists of four QUICKON nuts for secure attachment, and includes a coding profile, with external cable diameters spanning from 10mm to 13mm, ultimately secured by a sealing bolt.
Specifications
Connector Color
Black
Connector Amperage
7.5 Amp
Manufacturer
Phoenix Contact
Component
Power Distributor
Number of Positions
2+P
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105

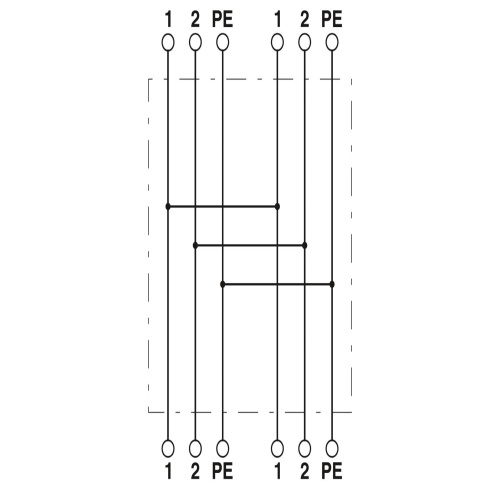

Flexible and compact - by connecting connections internally, H and T-distributors can be used to branch master cables or they can be used as star distributors
