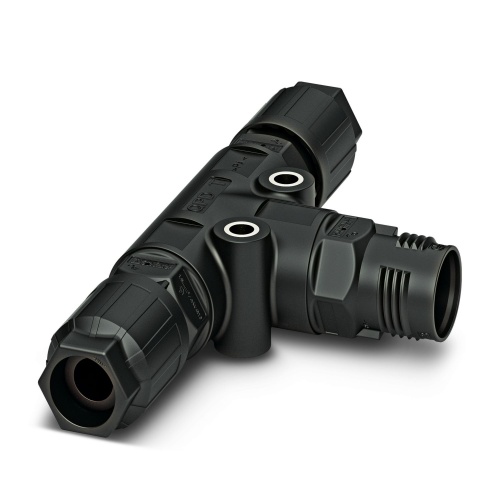

Phoenix Contact 1414711 T distributor QPD T 2PE1,5 2X4-9 BK
Normally In Stock
Code: 237753
Phoenix Contact 1414711 Power Distributor, Black, rated voltage: 690 V, nom. current: 7.5 Amp,Number of positions: 2+P,
Condition: New
Usually ships Same Day or Next Day$60.48
Sale Price
$50.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1414711 A distributor from the product family QPD has a connection method of IDC and can accommodate 2 or more positions with varying cross-sectional areas ranging from 0.5 to 1.5 mm2, operating within a voltage range of 690 V and drawing up to 17.5 A. The component is packaged in black PA material and features two QUICKON nuts, along with an external cable diameter spanning between 5 to 7 mm or 7 to 9.5 mm.
Specifications
Connector Color
Black
Connector Amperage
7.5 Amp
Manufacturer
Phoenix Contact
Component
Power Distributor
Number of Positions
2+P
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Flexible and compact - by connecting connections internally, H and T-distributors can be used to branch master cables or they can be used as star distributors
