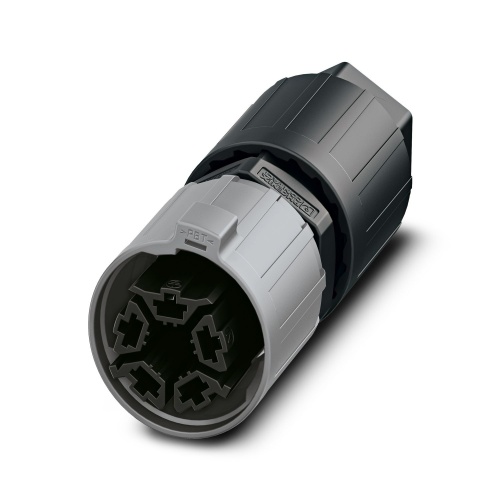

Phoenix Contact 1403782 Connector QPD P 4PE2,5 9-16 BK
Normally In Stock
Code: 236961
Phoenix Contact 1403782 - Connector - 5 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$17.93
Sale Price
$14.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

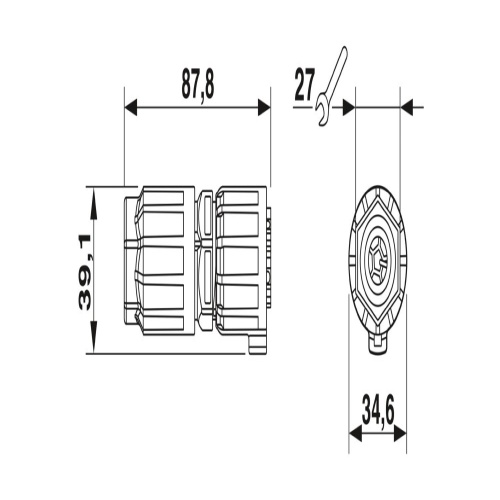

Phoenix Contact 1403782 The connector is part of a product family called QPD and features an IDC connection method, allowing for connections up to 4 pins per contact unit, with varying sizes ranging from 1mm² to 2.5mm². It operates within a voltage range of 690V and has a maximum current capacity of 20A. The connector is black in color, equipped with a QUICKON nut for easy installation, and has an external cable diameter that spans between 9mm and 16mm in width.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
