Code: 236680

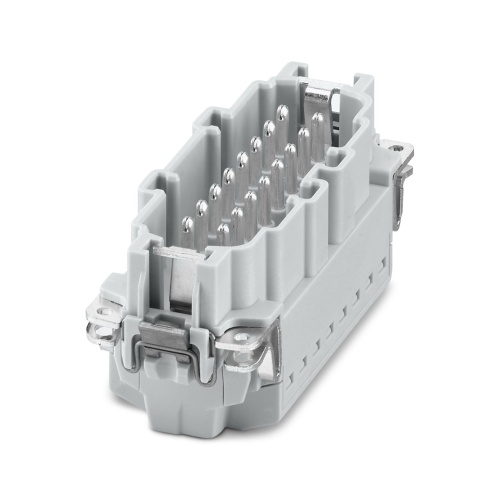

Phoenix Contact 1350015 Contact insert HC-B16-I-PT-CI-M
Normally In Stock
Phoenix Contact 1350015 - Contact insert - 16 Positions - Copper Alloy - 26 AWG - 16 Amp - 500 V - Push-In Connection
Condition: New
Usually ships Same Day or Next Day$30.71
Sale Price
$25.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

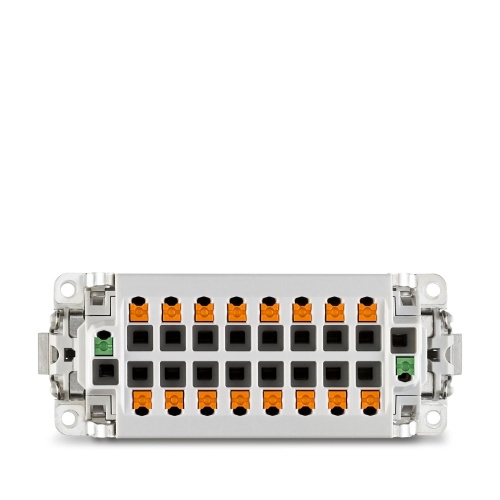

Phoenix Contact 1350015 The contact insert has a diameter of B16 and includes multiple positions for insertion, specifically designed for the push-in connection method with up to 18 positions available for installation, accommodating various wire gauges from 0.14mm² to 2.5mm², with an operating voltage of 500V and a maximum current rating of 16A, suitable for tool-free click-in mounting in power applications.
Specifications

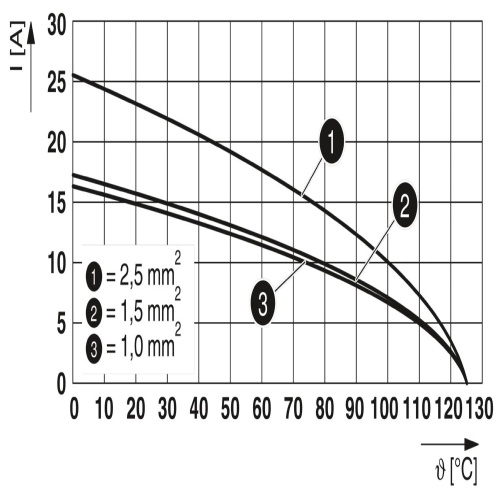

Connector Amperage
16 Amp
Connector Size
B16
Connector Material
PC
Connector Material
Copper Alloy
Component
Contact Insert
Manufacturer
Phoenix Contact

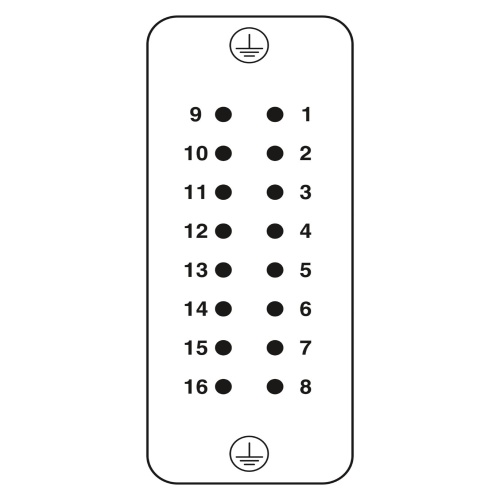

Number of Positions
16
Connector Voltage
500 Volt
Features
Significant time savings and improved handling: Consistent and easy tool-free installation and mounting with Push-in connection technology and innovative Click-in latching
Tool-free installation and mounting of the PE connection with Push-in connection technology
Shortest installation time compared to other connection technologies
Quick and effortless wiring, in particular when space is tight
Secure installation: Audible and tangible latching of the contact inserts in the connector housing
Reliable connection: The Click-in contact insert latches into the housing creating a shock- and vibration-resistant connection in accordance with DIN EN 61373
Easy integration: Click-in contact inserts fit in all plastic and metal housings of the HEAVYCON STANDARD and EVO series
Automatic cabling with robots possible
Safe wiring and operation with color-coded actuators
Cost-effective and fast coding with plastic profiles
Test pick-off for 2 mm test plug
Shock and vibration-resistant in accordance with DIN EN 61373
